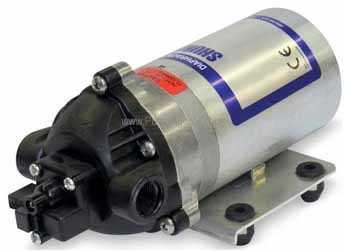

Shurflo 8030-957-239 Automatic Diaphragm Pump

Shurflo # 8030-957-239 Diaphragm Pump with Automatic Switch

Shurflo # 8030-957-239

Shurflo catalog # 8030-957-239, Diaphragm Pump with 24 Volt DC Motor and Automatic Switch. Nylon Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Discharge Port is 3/8 Inch NPT.

Price : $ 460.51

Click Here for PARTS

Product Information :

Parts Page (click here)

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Pressure Switch: control pressure is 125 PSI

Approvals: CE

Features :

Pump Body:

Nylon

Impeller:

EPDM

Shaft:

Santoprene

Port Size:

Inlet Port is 3/8 Inch NPT, Discharge Port is 3/8 Inch NPT.

Motor Specs :

24 Volt DC. Wire: 12.5 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 8030-957-239

Pressure Switch Kit :

Catalog # 94-375-20, SWITCH ASSEMBLY

Price: $ 44.71

Check Valve Kit :

Catalog # 94-374-09, CHECK VALVE REPLACEMENT

Price: $ 16.04

Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 30.65

Valve Assembly Kit :

Catalog # 94-390-06, EPDM VALVES (NSF) FOR

Price: $ 29.79

Drive Assembly Kit :

Catalog # 94-385-32, CAM 3.0 DEG FOR 8000 &

Price: $ 78.73
