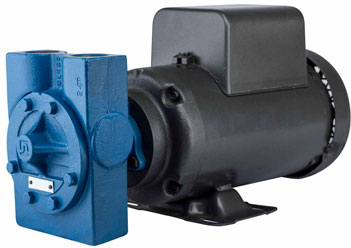

Tuthill catalog # 4108-A-89263, Cast Iron Rotary Gear Pump and Motor unit, close coupled pump and motor assembly, with a mechanical seal and carbon graphite idler and housing bushings, A type Tang Shaft, 1 Inch NPT by 1 Inch NPT ports, rated for a maximum flow of 12. 9 GPM at 1750 RPM. This pump is close coupled and assembled onto a 1 Horsepower, 1725 RPM, 208-230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), 56YZ FRAME electric motor. Inlet Port is 1 Inch NPT, Discharge Port is 1 Inch NPT.
Price : $ 2451.55
The Tuthill 4108-A-89263 is a Cast Iron Rotary Gear Pump and Motor unit, close coupled pump and motor assembly, with a mechanical seal and carbon graphite idler and housing bushings, A type Tang Shaft, 1 Inch NPT by 1 Inch NPT ports, rated for a maximum flow of 12. 9 GPM at 1750 RPM. This pump is close coupled and assembled onto a 1 Horsepower, 1725 RPM, 208-230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), 56YZ FRAME electric motor. Tuthill 4000 Series cast iron pumps employ the internal gear pumping principle. There are only two moving parts, and the pumping action is based on a rotor, idler gear, and crescent shaped partition cast integral with the cover. This pump can be driven in either direction of rotation, unless outfitted with an internal relief valve. This pump does NOT have an internal relief valve, so an external relief valve should be added somewhere on the discharge piping. Please note that this pump is a positive displacement pump and as the pump rotates, liquid is positively delivered to the discharge side of the pump. If the discharge line is closed off, pressure will increase until the drive stalls and/or fails, the pump breaks or ruptures, or the piping bursts. To prevent this from happening, the use of a pressure relief valve is required, or use of an in-line safety relief valve, pressure shutdown switch or other similar device. A relief valve that directs the flow back to the supply tank is recommended. This pump should not be used for handling plain water, corrosive or abrasive liquids or liquids not possessing adequate lubricity. Do not run the pump dry, as this could cause severe damage to the internal seal, bushings and/or metal parts.
Pump less Motor / Replacement Pumphead :
Catalog # 4108-A, Cast Iron Rotary Gear Pump. Pump End Only. 13 GPM 4108 Series. Cast Iron Construction NO motor. Tang Shaft. Inlet Port is 1 inch NPT, Discharge Port is 1 inch NPT.
Price: $ 1377.34
Motor :
Catalog # 89263, Motor with internal mod-A tang hub, spec number 35L888L007G1, 1 Horsepower, 1725 RPM, 208-230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), 56YZ FRAME, electric motor only.
Price: $ 1723.37
Shaft Seal :
Catalog # 1LA9-7, Viton mechanical seal
Price: $ 155.20
Other Parts :
Catalog # 1L519, 3 Piece Coupling
Price: $ 40.25
There are many applications that the Tuthill 4108A89263 can be used in. This reliable internal gear pump is ideal for custom OEM lubricating, lowpressure hydraulic, transfer, circulating, burner oil and many other industrial pump applications, and can be used in Air Conditioning Compressors, Air Compressors, Gas Compressors, Gearboxes, Transmissions, Engines. Many Original Equipment Manufacturers worldwide incorporate Tuthill internal gear pumps into their products for lubrication and transfer service. This widespread acceptance is a result of product performance and reliability.
