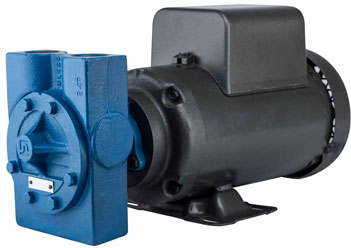

Tuthill catalog # 4108V-C-A-88601, Cast Iron Rotary Gear Pump and Motor unit, close coupled pump and motor assembly, with a mechanical seal and carbon graphite idler and housing bushings, Internal Relief Valve, Relief valve is set at 55 PSI (can be adjusted in field), Clockwise rotation only (from shaft end view), A type Tang Shaft, 1 Inch NPT by 1 Inch NPT ports, rated for a maximum flow of 12. 9 GPM at 1750 RPM. This pump is close coupled and assembled onto a 1/2 Horsepower, 1725 RPM, 115/230 Volts, Single Phase, XP, 56YZ FRAME electric motor. Inlet Port is 1 Inch NPT, Discharge Port is 1 Inch NPT.
Price : $ 2518.68
The Tuthill 4108V-C-A-88601 is a Cast Iron Rotary Gear Pump and Motor unit, close coupled pump and motor assembly, with a mechanical seal and carbon graphite idler and housing bushings, Internal Relief Valve, Relief valve is set at 55 PSI (can be adjusted in field), Clockwise rotation only (from shaft end view), A type Tang Shaft, 1 Inch NPT by 1 Inch NPT ports, rated for a maximum flow of 12. 9 GPM at 1750 RPM. This pump is close coupled and assembled onto a 1/2 Horsepower, 1725 RPM, 115/230 Volts, Single Phase, XP, 56YZ FRAME electric motor. Tuthill 4000 Series cast iron pumps have only two moving parts. Pumping action is based on a rotor, idler gear, and a cover cast with a crescent-shaped partition. This pump has an internal relief valve, and the adjusting screw of the relief valve is located on the suction side of the pump. The internal relief valve on this pump is designed for over-pressure protection only. It is not intended as a flow control device or for any similar use. Continuous operation of the relief valve will result in excessive heat buildup within the pump cavity that could cause serious internal damage. Make certain the adjusting screw of the relief valve is located on the suction side of the pump. Unless otherwise specified at the time of order, this pump is supplied with the standard spring, with a range of 40-70 psi, set to provide full bypass relief at 55 psi. This pump should not be used for handling plain water, corrosive or abrasive liquids or liquids not possessing adequate lubricity. Do not run the pump dry, as this could cause severe damage to the internal seal, bushings and/or metal parts.
Pump less Motor / Replacement Pumphead :
Catalog # 4108V-C-A, Cast Iron Rotary Gear Pump. Pump End Only. 13 GPM 4108 Series. Cast Iron Construction NO motor. Has Internal Relief Valve. Relief valve is set at 55 PSI (can be adjusted in field). Clockwise rotation only (from shaft end view). Tang Shaft. Inlet Port is 1 inch NPT, Discharge Port is 1 inch NPT.
Price: $ 1672.48
Motor :
Catalog # 88601, Motor with internal mod-A tang hub, spec number 34-6933-5593G1, 1/2 Horsepower, 1725 RPM, 115/230 Volts, Single Phase, XP, 56YZ FRAME, electric motor only.
Price: $ 2415.28
Shaft Seal :
Catalog # 1LA9-7, Viton mechanical seal
Price: $ 155.20
Other Parts :
Catalog # 1L519, 3 Piece Coupling
Price: $ 40.25
There are many applications that the Tuthill 4108VCA88601 can be used in. It can be used in Air Conditioning Compressors, Air Compressors, Gas Compressors, Gearboxes, Transmissions, Engines. This reliable internal gear pump is ideal for custom OEM lubricating, lowpressure hydraulic, transfer, circulating, burner oil and many other industrial pump applications.
