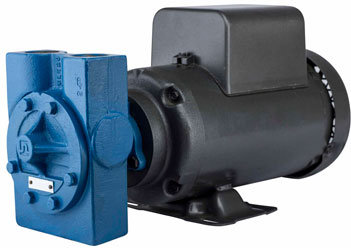

Tuthill catalog # 4108V-CC-A-7-88604, Cast Iron Rotary Gear Pump and Motor unit, close coupled pump and motor assembly, with a Viton mechanical seal and carbon graphite idler and housing bushings, Internal Relief Valve, Relief valve is set at 55 PSI (can be adjusted in field), COUNTER Clockwise rotation only (from shaft end view), A type Tang Shaft, Viton elastomers, 1 Inch NPT by 1 Inch NPT ports, rated for a maximum flow of 12. 9 GPM at 1750 RPM. This pump is close coupled and assembled onto a 1/2 Horsepower, 1725 RPM, 208-230/460 Volts, Three Phase, XP, 56YZ FRAME electric motor. Inlet Port is 1 Inch NPT, Discharge Port is 1 Inch NPT.
Price : $ 2727.27
The Tuthill 4108V-CC-A-7-88604 is a Cast Iron Rotary Gear Pump and Motor unit, close coupled pump and motor assembly, with a Viton mechanical seal and carbon graphite idler and housing bushings, Internal Relief Valve, Relief valve is set at 55 PSI (can be adjusted in field), COUNTER Clockwise rotation only (from shaft end view), A type Tang Shaft, Viton elastomers, 1 Inch NPT by 1 Inch NPT ports, rated for a maximum flow of 12. 9 GPM at 1750 RPM. This pump is close coupled and assembled onto a 1/2 Horsepower, 1725 RPM, 208-230/460 Volts, Three Phase, XP, 56YZ FRAME electric motor. This pump employs the internal gear pumping principle. Pumping action is based on a rotor, idler gear, and a cover cast with a crescent-shaped partition. The space between the outside diameter of the idler and the inside diameter of the rotor is sealed by the crescent. As the pump starts, the teeth come out of mesh, increasing the volume. The liquid fills the spaces between the teeth of the idler and the rotor and is carried past the crescent partition through the pressure side of the pump. When the teeth mesh on the pressure side, the liquid is forced from the spaces and out through the discharge port. This pump has an internal relief valve, and the adjusting screw of the relief valve is located on the suction side of the pump. The internal relief valve on this pump is designed for over-pressure protection only. It is not intended as a flow control device or for any similar use. Continuous operation of the relief valve will result in excessive heat buildup within the pump cavity that could cause serious internal damage. Make certain the adjusting screw of the relief valve is located on the suction side of the pump. Unless otherwise specified at the time of order, this pump is supplied with the standard spring, with a range of 40-70 psi, set to provide full bypass relief at 55 psi. This pump should not be used for handling plain water, corrosive or abrasive liquids or liquids not possessing adequate lubricity. Do not run the pump dry, as this could cause severe damage to the internal seal, bushings and/or metal parts.
Pump less Motor / Replacement Pumphead :
Catalog # 4108V-CC-A-7, Cast Iron Rotary Gear Pump. Pump End Only. 13 GPM 4108 Series. Cast Iron Construction NO motor. Has Internal Relief Valve. Relief valve is set at 55 PSI (can be adjusted in field). COUNTER Clockwise rotation only (from shaft end view). Tang Shaft. Inlet Port is 1 inch NPT, Discharge Port is 1 inch NPT.
Price: $ 1672.48
Motor :
Catalog # 88604, Motor with internal mod-A tang hub, spec number 34-6986-4696G1, 1/2 Horsepower, 1725 RPM, 208-230/460 Volts, Three Phase, XP, 56YZ FRAME, electric motor only.
Price: $ 2241.96
Shaft Seal :
Catalog # 1LA9-7, Viton mechanical seal
Price: $ 155.20
Other Parts :
Catalog # 1L519, 3 Piece Coupling
Price: $ 40.25
There are many applications that the Tuthill 4108VCCA788604 can be used in. This reliable internal gear pump is ideal for custom OEM lubricating, lowpressure hydraulic, transfer, circulating, burner oil and many other industrial pump applications. It can be used in Air Conditioning Compressors, Air Compressors, Gas Compressors, Gearboxes, Transmissions, Engines.
