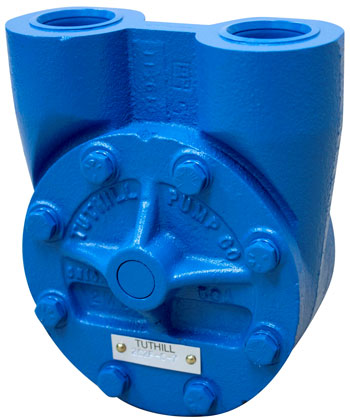

Tuthill # 4C2FV-CC-LH-7 Rotary Gear Pump

The Tuthill 4C2FV-CC-LH-7 is a Cast Iron Rotary Gear Pump, Pump End Only, no motor, Flange Mount, with a Viton Lip Seal, Internal Relief Valve, Relief valve is set at 90 PSI (can be adjusted in field), Counter Clockwise rotation only (from shaft end view), LH left-hand suction port (from shaft end view), standard shaft, Viton elastomers, and 1-1/2 Inch NPT by 1-1/2 Inch NPT ports. This pump was specifically developed for flange mounting applications and for close coupling to Tuthill's special motors to provide extremely compact close-coupled combinations. This pump is supplied with a single spring-loaded lip seal, and can handle inlet pressures to 25 PSI, and has a maximum differential capability of 100 PSI. This pump has only two moving parts. Pumping action is based on a rotor, idler gear, and a cover cast with a crescent-shaped partition. The space between the outside diameter of the idler and the inside diameter of the rotor is sealed by the crescent. Power applied to the rotor is transmitted to the idler gear with which it meshes. The liquid fills the spaces between the teeth of the idler and the rotor and is carried past the crescent partition through the pressure side of the pump. When the teeth mesh on the pressure side, the liquid is forced from the spaces and out through the discharge port. This pump has an LH left-hand suction port designation from the shaft end view. This pump has an internal relief valve, and the adjusting screw of the relief valve is located on the suction side of the pump. The internal relief valve on this pump is designed for over-pressure protection only. It is not intended as a flow control device or for any similar use. Continuous operation of the relief valve will result in excessive heat buildup within the pump cavity that could cause serious internal damage. Make certain the adjusting screw of the relief valve is located on the suction side of the pump. Unless otherwise specified at the time of order, this pump is supplied with the standard spring, with a range of 30-225 psi, set to provide full bypass relief at 90 psi. This pump should not be used for handling plain water, corrosive or abrasive liquids or liquids not possessing adequate lubricity. Do not run the pump dry, as this could cause severe damage to the internal seal, bushings and/or metal parts.
