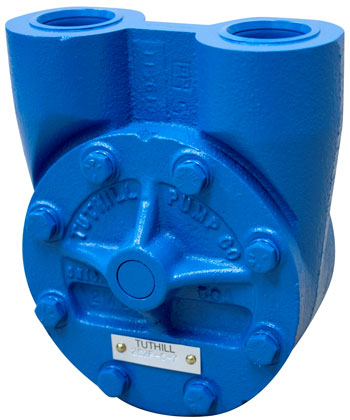

Tuthill # 5RC2FN-C-RH-A Rotary Gear Pump

The Tuthill 5RC2FN-C-RH-A is a Cast Iron Rotary Gear Pump, Pump End Only, no motor, Flange Mount, with Reversing Feature, Outboard Ball Bearing, Clockwise rotation only (from shaft end view), RH right-hand suction port (from shaft end view), A-type Tang Shaft, and 1-1/2 Inch NPT by 1-1/2 Inch NPT ports. This pump was specifically developed for flange mounting applications and for close coupling to Tuthill's special motors to provide extremely compact close-coupled combinations. This pump is supplied with a single spring-loaded lip seal, and can handle inlet pressures to 25 PSI, and has a maximum differential capability of 100 PSI. This pump has an outboard ball bearing and was specifically developed for use with belt drives or similar applications were a side load is applied to the pump shaft. This pump employs the internal gear pumping principle. Pumping action is based on a rotor, idler gear, and a cover cast with a crescent-shaped partition. The space between the outside diameter of the idler and the inside diameter of the rotor is sealed by the crescent. As the pump starts, the teeth come out of mesh, increasing the volume. The liquid fills the spaces between the teeth of the idler and the rotor and is carried past the crescent partition through the pressure side of the pump. When the teeth mesh on the pressure side, the liquid is forced from the spaces and out through the discharge port. This pump features a unique reversing feature design. This design is ideal for rotating equipment and power transmission where direction of flow must remain consistent, even when shaft rotation changes. This pump has an RH right-hand suction port designation from the shaft end view. This pump can be driven in either direction of rotation, unless outfitted with an internal relief valve. This pump does NOT have an internal relief valve, so an external relief valve should be added somewhere on the discharge piping. Please note that this pump is a positive displacement pump and as the pump rotates, liquid is positively delivered to the discharge side of the pump. If the discharge line is closed off, pressure will increase until the drive stalls and/or fails, the pump breaks or ruptures, or the piping bursts. To prevent this from happening, the use of a pressure relief valve is required, or use of an in-line safety relief valve, pressure shutdown switch or other similar device. A relief valve that directs the flow back to the supply tank is recommended. This pump should not be used for handling plain water, corrosive or abrasive liquids or liquids not possessing adequate lubricity. Do not run the pump dry, as this could cause severe damage to the internal seal, bushings and/or metal parts.
