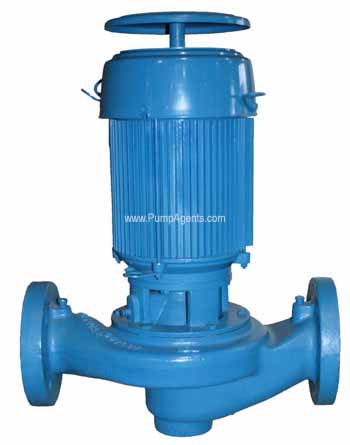

Weinman catalog # 2007CVE-30S64, Vertical In-Line Centrifugal Pump, Cast Iron construction, Bronze impeller, Buna/Carbon/Ceramic Mechanical seal. Motor is 3 Horsepower, 1750 RPM, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled). Inlet Port is 2 inch, Discharge Port is 2 inch.
Price : $ 8176.46
The Weinman 2007CVE-30S64 is a Cast Iron Vertical In-Line Centrifugal Pump, with Bronze Impeller, Buna/Carbon/Ceramic Mechanical Seal, 2 inch by 2 inch Ports, close coupled to a 3 Horsepower, 1750 RPM, 115/230 Volts, single phase, TEFC (Totally Enclosed Fan Cooled) Motor. Weinman inline centrifugal pumps are designed specifically for heating, air conditioning, commercial building and municipal applications. Suction and discharge nozzles are located 180 apart on the same centerline for mounting directly in a pipe line. This eliminates critical pipe alignment for ease of assembly and minimum pipe strain. The inline design eliminates the need for costly foundations and guarantees minimum space requirements. The motor and bracket assembly can be removed from the casing without disturbing the piping. The impeller, mechanical seal, shaft sleeve, and wear rings are therefore accessible for easy maintenance. Mechanical seals and bronze wear ring(s) are supplied as standard on certain pumps. A built in purge system assures proper flushing and venting of seals. A NEMA frame motor with a JM shaft is standard on most models. The motors are specifically designed for mechanical seal applications. Controlled tolerances and adequate bearings assure long life.
WEIGHT : The Weinman 2007CVE-30S64 weighs 145 Lbs.
There are many applications that the Weinman 2007CVE30S64 are used in. Typical applications are Heating, Air Conditioning, Industrial, Hydronic Heating and Cooling Systems, and Liquid Circulation.
