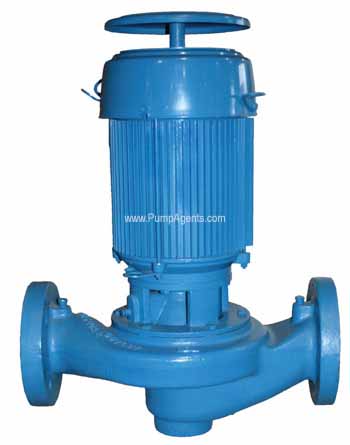

Weinman catalog # 2507CVE-50S52, Vertical In-Line Centrifugal Pump, Cast Iron construction, Bronze impeller, Buna/Carbon/Ceramic Mechanical seal. Motor is 5 Horsepower, 3500 RPM, 115/230 Volts, Single Phase, ODP (Open Drip Proof). Inlet Port is 2-1/2 inch, Discharge Port is 2-1/2 inch.
Price : $ 9663.73
The Weinman 2507CVE-50S52 is a Cast Iron Vertical In-Line Centrifugal Pump, with Bronze Impeller, Buna/Carbon/Ceramic Mechanical Seal, 2-1/2 inch by 2-1/2 inch Ports, close coupled to a 5 Horsepower, 3500 RPM, 115/230 Volts, single phase, ODP (Open Drip Proof) Motor. Weinman inline centrifugal pumps are designed specifically for heating, air conditioning, commercial building and municipal applications. Suction and discharge nozzles are located 180 apart on the same centerline for mounting directly in a pipe line. This eliminates critical pipe alignment for ease of assembly and minimum pipe strain. The inline design eliminates the need for costly foundations and guarantees minimum space requirements. The motor and bracket assembly can be removed from the casing without disturbing the piping. The impeller, mechanical seal, shaft sleeve, and wear rings are therefore accessible for easy maintenance. Mechanical seals and bronze wear ring(s) are supplied as standard on certain pumps. A built in purge system assures proper flushing and venting of seals. A NEMA frame motor with a JM shaft is standard on most models. The motors are specifically designed for mechanical seal applications. Controlled tolerances and adequate bearings assure long life.
WEIGHT : The Weinman 2507CVE-50S52 weighs 155 Lbs.
There are many applications that the Weinman 2507CVE50S52 are used in. Typical applications are Heating, Air Conditioning, Industrial, Hydronic Heating and Cooling Systems, and Liquid Circulation.
