Weinman # 3R-50P16 End Suction Centrifugal Pump 5 HP

Weinman Pump 3R-50P16

Weinman # 3R-50P16

Weinman catalog # 3R-50P16, End Suction back pull out Centrifugal Pump, Cast Iron construction, Silicon Brass impeller, Buna/Carbon/Ceramic Mechanical seal. Motor is 5 Horsepower, 1150 RPM, 230/460 Volts, Three Phase, ODP (Open Drip Proof). Inlet Port is 4 inch Inlet, Discharge Port is 3 inch Discharge.

Price : $ 8958.76

Qty :

6 Weeks (out of stock)



Product Information :

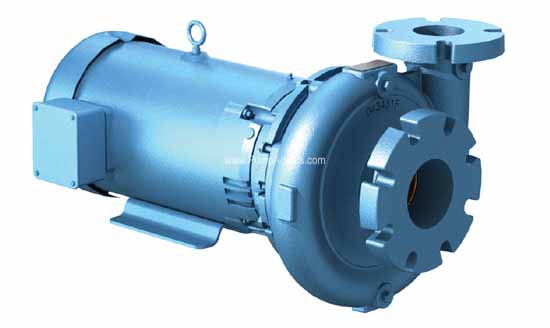

The Weinman 3R-50P16 is a Cast Iron End Suction back pull out Centrifugal Pump, with Silicon Brass Impeller, Buna/Carbon/Ceramic Mechanical Seal, 4 inch inlet by 3 inch Discharge Ports, close coupled to a 5 Horsepower, 1150 RPM, 230/460 Volts, Three Phase, ODP (Open Drip Proof) Motor. This end suction pump is designed to minimize capital, maintenance and operating expenses. These pumps provide a broad range of sizes that offer the high efficiency of a tangential discharge pump and the serviceability of a back pull-out design. Unlike other manufacturers, the Weinman End Suction back pull Out Series is self-venting to simplify start-up, is NSF 372 certified (optional NSF 61) and has a standard two week lead-time. It is a drop-in replacement for 50 percent of the industrys installed base, eliminating the need to modify piping on the job site. All of these characteristics are supported by more than 150 years of experience, market leading customer service and a brand you trust.
WEIGHT : The Weinman 3R-50P16 weighs 340 Lbs.

Features :

Pump Body:
Cast Iron
Impeller:
Silicon Brass
Shaft Seal:
Buna/Carbon/Ceramic Mechanical seal
Port Size:
Inlet Port is 4 inch Inlet, Discharge Port is 3 inch Discharge.
Motor Specs :
5 Horsepower, 1150 RPM, 230/460 Volts, Three Phase, ODP (Open Drip Proof).

Applications

There are many applications that the Weinman 3R50P16 are used in. Typical applications are Commercial, HVAC, Hot water systems, Industrial processes, and Municipal drinking water.
