Weinman # 4AC-3P12 - Centrifugal Pump 1/3 HP, 3500 RPM, ODP, Buna

Weinman Pump 4AC-3P12

Weinman # 4AC-3P12

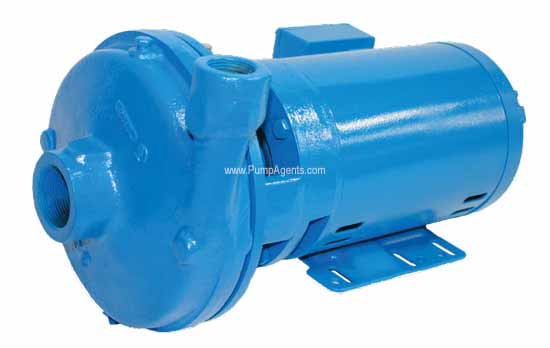

Weinman catalog # 4AC-3P12, Centrifugal Pump and Motor unit. Cast Iron body, and Bronze enclosed impeller. Seal: Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts. Pump is Close Coupled to a 1/3 Horsepower, 3500 RPM, 230/460, Three Phase, ODP (Open Drip Proof) Motor. 1.25 Inch NPT Inlet Port, 1 Inch NPT Discharge Port.

Price : $ 3626.32

Qty :

6 Weeks (out of stock)



Product Information :

Weinman pumps are designed for rugged and long, trouble free general service such as transfer of hot or chilled water and pressure boosting service. They eliminate maintenance, other than routine maintenance for years of economical service by incorporating the most advanced principles of hydraulic design. These pumps are built to meet and exceed the specifications for which they are engineered. In addition, every unit is made from the finest materials - precision machined, carefully fit together, and then tested to ensure performance on the job.

Features :

Pump Body:
Cast Iron body
Impeller:
Bronze enclosed impeller
Shaft Seal:
Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts.
Port Size:
1.25 Inch NPT Inlet Port, 1 Inch NPT Discharge Port.
Motor Specs :
1/3 Horsepower, 3500 RPM, 230/460, Three Phase, ODP (Open Drip Proof).
