Weinman # 4AE-7S24 - Centrifugal Pump 3/4 HP, 1750 RPM, TEFC, Buna

Weinman Pump 4AE-7S24

Weinman # 4AE-7S24

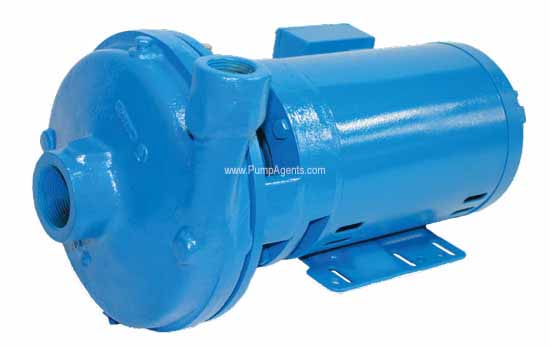

Weinman catalog # 4AE-7S24, Centrifugal Pump and Motor unit. Cast Iron body, and Bronze enclosed impeller. Seal: Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts. Pump is Close Coupled to a 3/4 Horsepower, 1750 RPM, 115/230, Single Phase, TEFC (Totally Enclosed Fan Cooled) Motor. 1.5 Inch NPT Inlet Port, 1 Inch NPT Discharge Port.

Price : $ 6091.80

Qty :

6 Weeks (out of stock)



Product Information :

Weinman pumps are designed for rugged and long, trouble free general service such as transfer of hot or chilled water and pressure boosting service. They eliminate maintenance, other than routine maintenance for years of economical service by incorporating the most advanced principles of hydraulic design. These pumps are built to meet and exceed the specifications for which they are engineered. In addition, every unit is made from the finest materials - precision machined, carefully fit together, and then tested to ensure performance on the job.

Features :

Pump Body:
Cast Iron body
Impeller:
Bronze enclosed impeller
Shaft Seal:
Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts.
Port Size:
1.5 Inch NPT Inlet Port, 1 Inch NPT Discharge Port.
Motor Specs :
3/4 Horsepower, 1750 RPM, 115/230, Single Phase, TEFC (Totally Enclosed Fan Cooled).

Parts and Accessories for Weinman model 4AE-7S24
