Weinman4G1-150P12-Y34CentrifugalPump 15 HP ODP 3500 RPM Buna

Weinman # 4G1-150P12-Y34

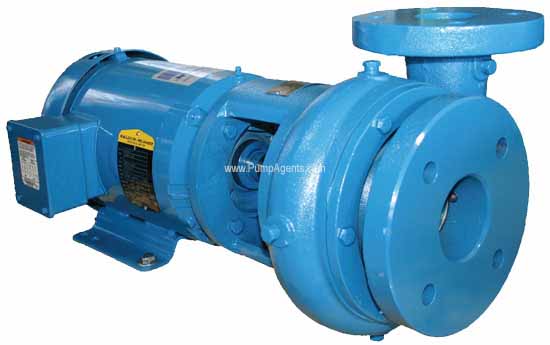

Weinman catalog # 4G1-150P12-Y34, Centrifugal Pump and Motor unit. Cast Iron body, with Bronze wear ring, and Bronze enclosed impeller. Seal: Type 21 Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts. Pump is Close Coupled to a 15 Horsepower, 3500 RPM, 208-230/460, Three Phase, ODP (Open Drip Proof) Motor. 4 Inch 150 lb Flanged Discharge Port, 5 Inch 150 lb Flanged Inlet Port.

Price : $ 10701.48

Product Information :

Weinman's versatile end-suction pumps are heavy duty, general purpose centrifugal pumps with heavy wall castings suitable for many commercial, industrial and municipal needs. Applications include condenser, chilled, and hot water systems in HVAC, process secondary pumping, and municipal drinking water. High efficiencies, robust case construction of cast iron, and impeller construction of bronze makes these pumps an ideal selection for applications that require easy-to-maintain, reliable, long lasting pumps.

Features :

Pump Body:

Cast Iron body, with Bronze wear ring

Impeller:

Bronze enclosed impeller

Shaft Seal:

Type 21 Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts.

Port Size:

4 Inch 150 lb Flanged Discharge Port, 5 Inch 150 lb Flanged Inlet Port.

Motor Specs :

15 Horsepower, 3500 RPM, 208-230/460, Three Phase, ODP (Open Drip Proof).

Weinman # 4G1-150P12-Y34 Centrifugal Pump 15 HP, 3500RPM, ODP, Buna
