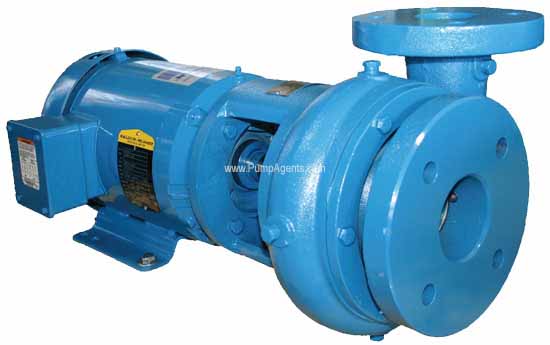

Weinman6G-250P24-Centrifugal Pump 25 HP TEFC 1750 RPM Buna

Weinman # 6G-250P24

Weinman catalog # 6G-250P24, Centrifugal Pump and Motor unit. Cast Iron body, with Bronze wear ring, and Bronze enclosed impeller. Seal: Type 21 Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ceramic Seal Seat, Stainless Steel metal parts. Pump is Close Coupled to a 25 Horsepower, 1750 RPM, 208-230/460, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. 6 Inch 150 lb Flanged Discharge Port, 8 Inch 150 lb Flanged Inlet Port.

Price : $ 20160.45

Product Information :

Weinman general service close coupled pumps are low cost pumping units that provide efficiency and dependability. These dependable pumps are a rugged design based on the most advanced principles of hydraulic engineering. Their compact design saves floor space while their adaptability permits maximum operating efficiency in any position, horizontal or vertical. The result is efficient operation with a modest initial investment and low operating and maintenance costs.

Features :

Pump Body:

Cast Iron body, with Bronze wear ring

Impeller:

Bronze enclosed impeller

Shaft Seal:

Type 21 Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ceramic Seal Seat, Stainless Steel metal parts.

Port Size:

6 Inch 150 lb Flanged Discharge Port, 8 Inch 150 lb Flanged Inlet Port.

Motor Specs :

25 Horsepower, 1750 RPM, 208-230/460, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Weinman # 6G-250P24 - Centrifugal Pump 25 HP, 1750 RPM, TEFC, Buna
