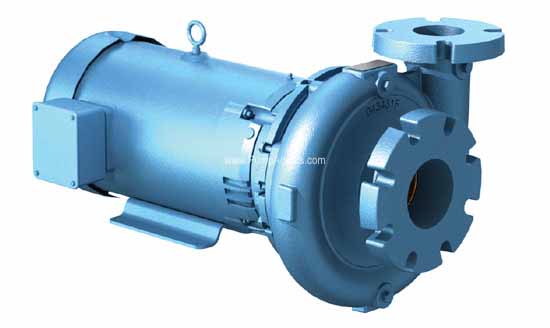

Weinman catalog # 6Q-500P14, End Suction back pull out Centrifugal Pump, Cast Iron construction, Silicon Brass impeller, Buna/Carbon/Ceramic Mechanical seal. Motor is 50 Horsepower, 1760 RPM, 230/460 Volts, Three Phase, ODP (Open Drip Proof). Inlet Port is 8 inch Inlet, Discharge Port is 6 inch Discharge.
Price : $ 15107.02
The Weinman 6Q-500P14 is a Cast Iron End Suction back pull out Centrifugal Pump, with Silicon Brass Impeller, Buna/Carbon/Ceramic Mechanical Seal, 8 inch inlet by 6 inch Discharge Ports, close coupled to a 50 Horsepower, 1760 RPM, 230/460 Volts, Three Phase, ODP (Open Drip Proof) Motor. This end suction pump is designed to minimize capital, maintenance and operating expenses. These pumps provide a broad range of sizes that offer the high efficiency of a tangential discharge pump and the serviceability of a back pull-out design. Unlike other manufacturers, the Weinman End Suction back pull Out Series is self-venting to simplify start-up, is NSF 372 certified (optional NSF 61) and has a standard two week lead-time. It is a drop-in replacement for 50 percent of the industrys installed base, eliminating the need to modify piping on the job site. All of these characteristics are supported by more than 150 years of experience, market leading customer service and a brand you trust.
WEIGHT : The Weinman 6Q-500P14 weighs 695 Lbs.
There are many applications that the Weinman 6Q500P14 are used in. Typical applications are Commercial, HVAC, Hot water systems, Industrial processes, and Municipal drinking water.
