Weinman 8AC-50S22 - Centrifugal Pump 5 HP TEFC 3500 RPM Buna

Weinman # 8AC-50S22

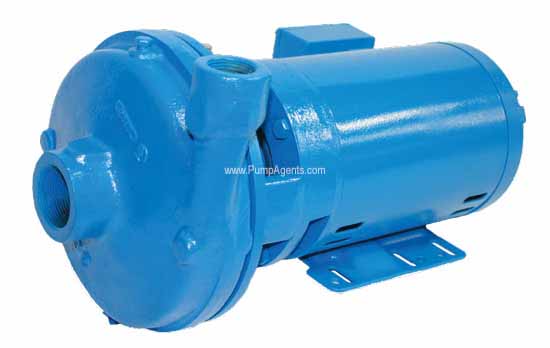

Weinman catalog # 8AC-50S22, Centrifugal Pump and Motor unit. Cast Iron body, and Bronze enclosed impeller. Seal: Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts. Pump is Close Coupled to a 5 Horsepower, 3500 RPM, 115/230, Single Phase, TEFC (Totally Enclosed Fan Cooled) Motor. 2.5 Inch NPT Inlet Port, 2 Inch NPT Discharge Port.

Price : $ 11003.22

Product Information :

Weinman pumps are designed for rugged and long, trouble free general service such as transfer of hot or chilled water and pressure boosting service. They eliminate maintenance, other than routine maintenance for years of economical service by incorporating the most advanced principles of hydraulic design. These pumps are built to meet and exceed the specifications for which they are engineered. In addition, every unit is made from the finest materials - precision machined, carefully fit together, and then tested to ensure performance on the job.

Features :

Pump Body:

Cast Iron body

Impeller:

Bronze enclosed impeller

Shaft Seal:

Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts.

Port Size:

2.5 Inch NPT Inlet Port, 2 Inch NPT Discharge Port.

Motor Specs :

5 Horsepower, 3500 RPM, 115/230, Single Phase, TEFC (Totally Enclosed Fan Cooled).

Weinman # 8AC-50S22 - Centrifugal Pump 5 HP, 3500 RPM, TEFC, Buna
