Parts for AMT Pump model # 12SP10C-1P

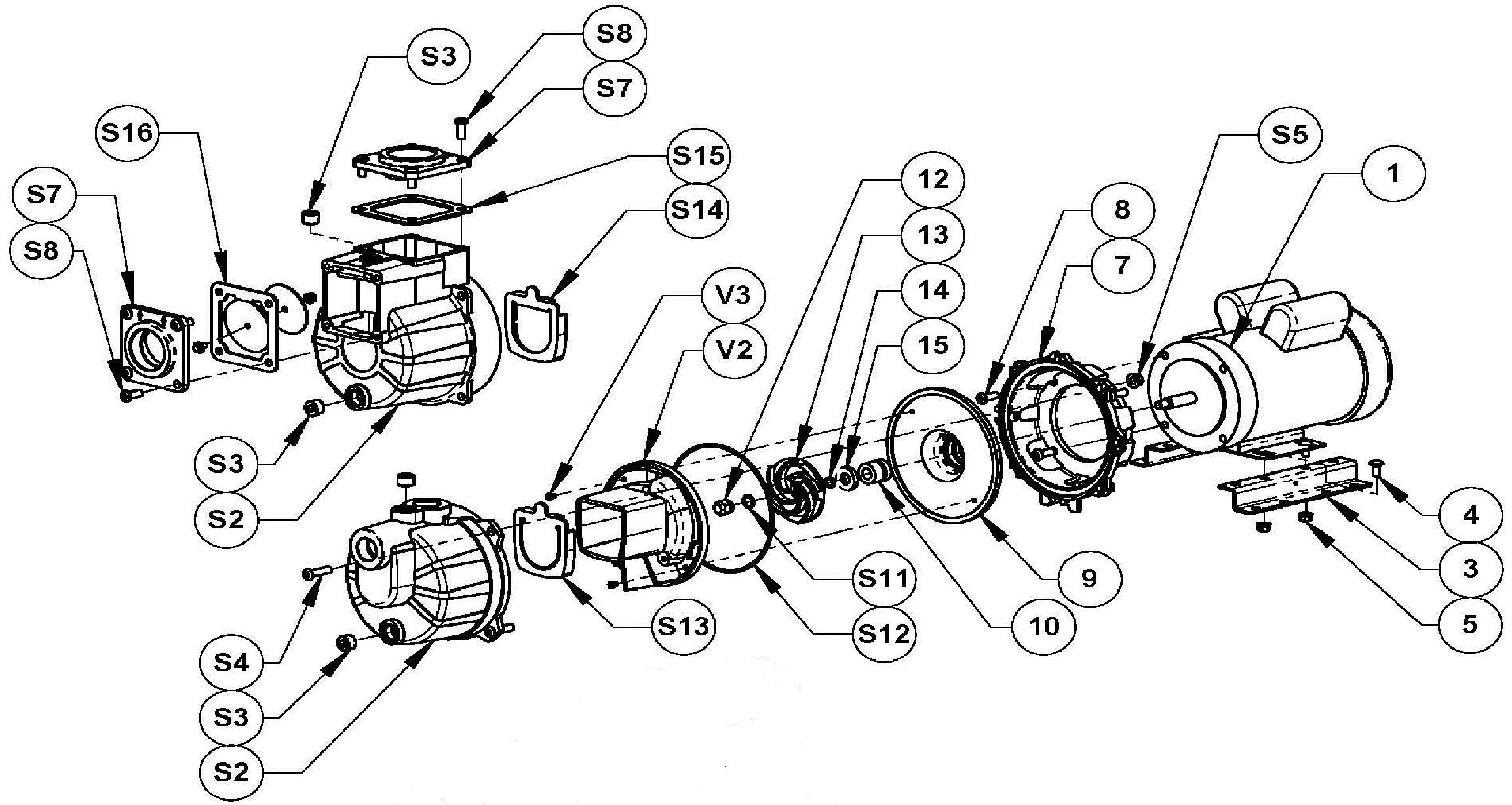

Item 1
(on image above)

Motor

Motor, 1 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)

$ 529.74 / each

Item 7
(on image above)

Part # 1A11-030-95

Adapter Kit. Includes : Adapter Kit (Ref. 7), Fasteners (Ref. 8)

$ 89.10 / each

Item 9
(on image above)

Part # 1A11-020-95

Mechanical Seal, Type 6, size 5/8 Inch

$ 81.00 / each

Item 10
(on image above)

Part # 1641-161-91

Seal

EPDM/EPR Seal Assembly

$ 59.94 / each

Item 13
(on image above)

Part # 1A19-010-95

Impeller

Impeller Kit. Includes : Impeller Lock Nut (Ref. 12), Impeller Kit (Ref. 13), Impeller Shim (Ref. 14)

$ 97.20 / each

Item 15
(on image above)

Part # 1A11-019-00

Seal Spacer

$ 22.68 / each

Item S2
(on image above)

Part # 1A21-001-95

Casing

Casing Kit. Includes : Casing Kit (Ref. S2), Pipe Plug (Ref. S3), Fasteners (Ref. S4), Fasteners (Ref. S5)

$ 275.40 / each

Item S13
(on image above)

Part # 1A11-305-90

Flapper & O-ring EPDM Kit. Includes : O-ring EPDM #113 (Ref. S11), O-ring EPDM #263 (Ref. S12), Flapper & O-ring EPDM Kit (Ref. S13)

$ 72.90 / each

Item V2
(on image above)

Part # 1A11-150-95

Volute Kit. Includes : Fasteners (Ref. V3), Volute Kit (Ref. V2)

$ 142.56 / each

AMT Pump model 12SP10C-1P Parts
