AMT Pump model 1SP05C-1P Parts

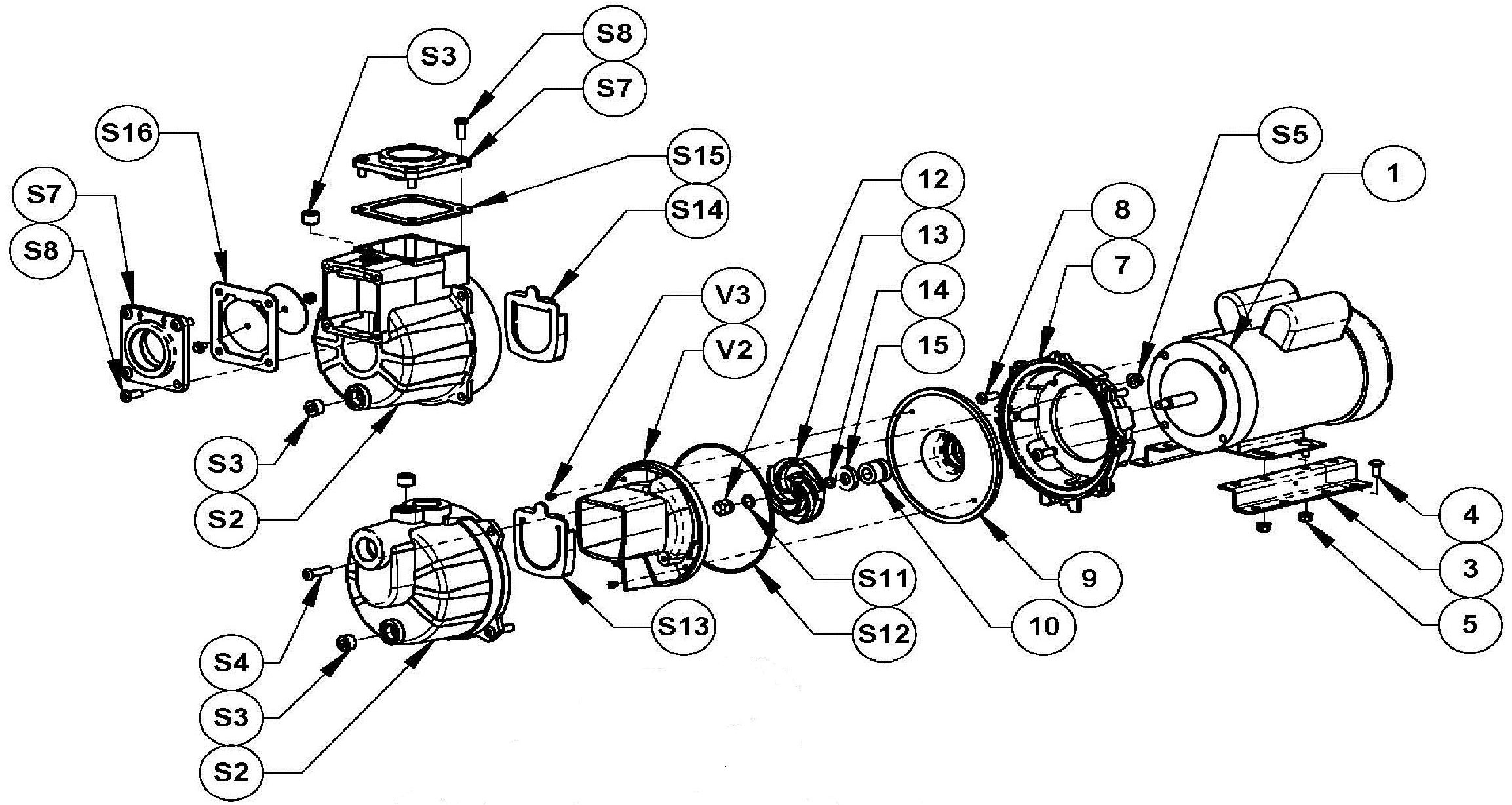

PARTS LIST for AMT Pump model # 1SP05C-1P Pump:
( Click Here for the AMT Pump 1SP05C-1P Product Page )
Item 1
(on image above)
Motor
Motor, 1/2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
$ 479.52 / each
Item 7
(on image above)
Adapter Kit. Includes : Adapter Kit (Ref. 7), Fasteners (Ref. 8)
$ 89.10 / each
Item 9
(on image above)
Mechanical Seal, Type 6, size 5/8 Inch
$ 81.00 / each
Item 10
(on image above)
Seal
EPDM/EPR Seal Assembly
$ 59.94 / each
Item 13
(on image above)
Impeller
Impeller Kit. Includes : Impeller Lock Nut (Ref. 12), Impeller Kit (Ref. 13), Impeller Shim (Ref. 14)
$ 72.90 / each
Item 15
(on image above)
Seal Spacer
$ 22.68 / each
Item S2
(on image above)
Casing
Casing Kit. Includes : Casing Kit (Ref. S2), Pipe Plug (Ref. S3), Fasteners (Ref. S4), Fasteners (Ref. S5)
$ 259.20 / each
Item S13
(on image above)
Flapper & O-ring EPDM Kit. Includes : O-ring EPDM #113 (Ref. S11), O-ring EPDM #263 (Ref. S12), Flapper & O-ring EPDM Kit (Ref. S13)
$ 72.90 / each
Item V2
(on image above)
Volute Kit. Includes : Fasteners (Ref. V3), Volute Kit (Ref. V2)
$ 142.56 / each
