AMT Pump model 2761-98 Parts( Click Here for the AMT Pump 2761-98 Product Page ) |
|

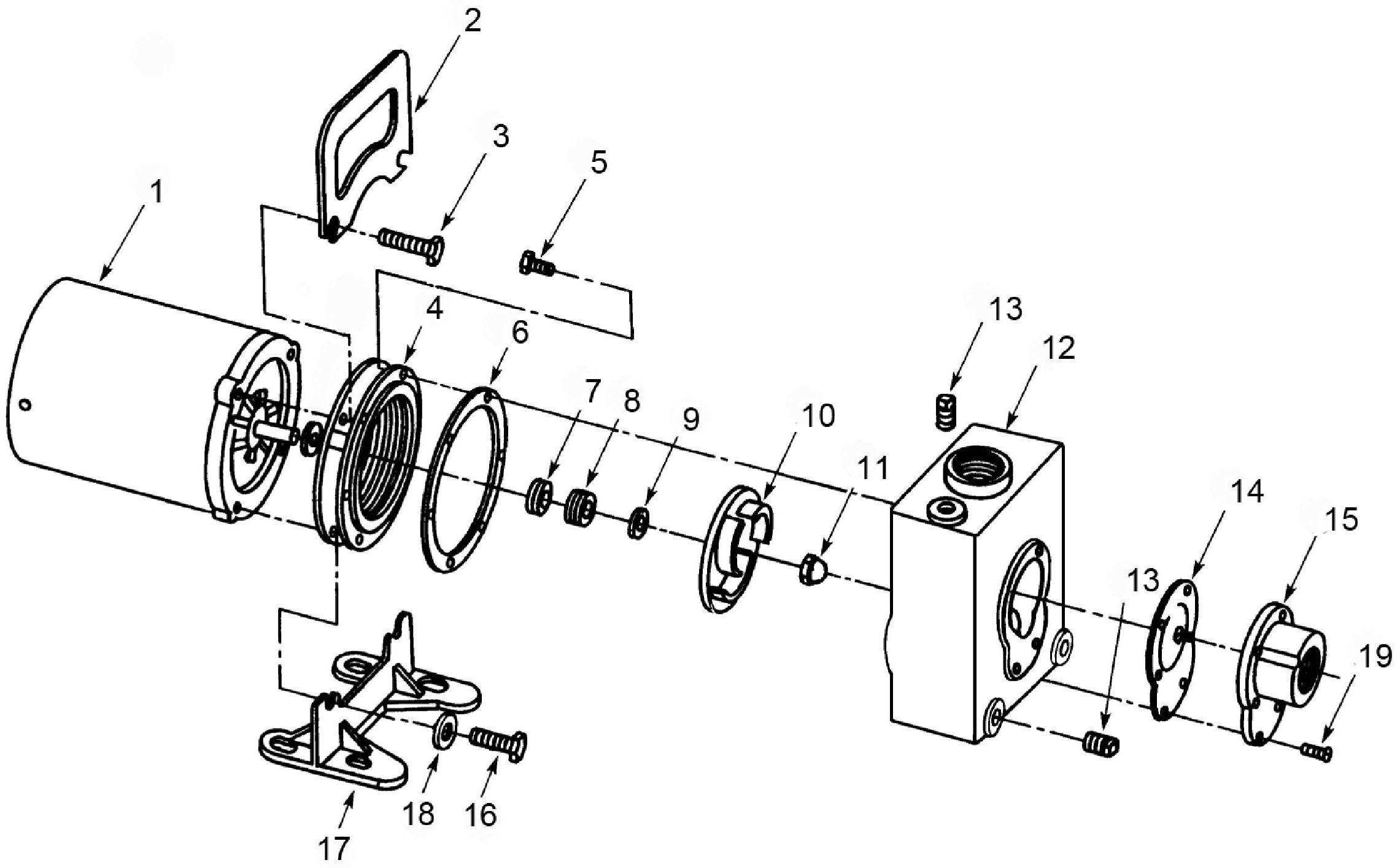

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 2761-98 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 2761-K8 | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $1784.20 | 1 in Stock | 1 | ||
| 1 | # 1626-024-00 | Motor, 2 Horsepower, 115/230 Volts, 1 Phase, ODP Open Drip Proof, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included) | $602.80 | 1 in Stock | 1 | ||
| 2 | # 1515-000-00 | Handle | $12.10 | 2 in Stock | 1 | ||
| 7+8 | # 1640-161-91 | Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch | $47.30 | 10 in Stock | 1 | ||
| 9 | # 1657-000-90 | Impeller Shim Set | $12.10 | 3 in Stock | 1 | ||
| 11 | # 1784-001-00 | Impeller Fastener | $12.10 | 2 in Stock | 1 | ||
| 12 | # 2760-001-V8 | Casing Kit - Viton | $1239.70 | 2 in Stock | 1 | ||
| 14 | # 2760-304-90 | Flapper Valve Assembly - Viton | $79.20 | 2 in Stock | 1 | ||
| 17 | # 1506-000-00 | Foot | $18.70 | 2 in Stock | 1 | ||
| KIT | # 2760-304-98 | Seal Kit - Viton (standard), includes the Shaft Seal Assembly, Casing Seal, and Flapper Valve Assembly | $112.20 | 20 in Stock | 1 | ||
