AMT Pump model 276A-98 Parts

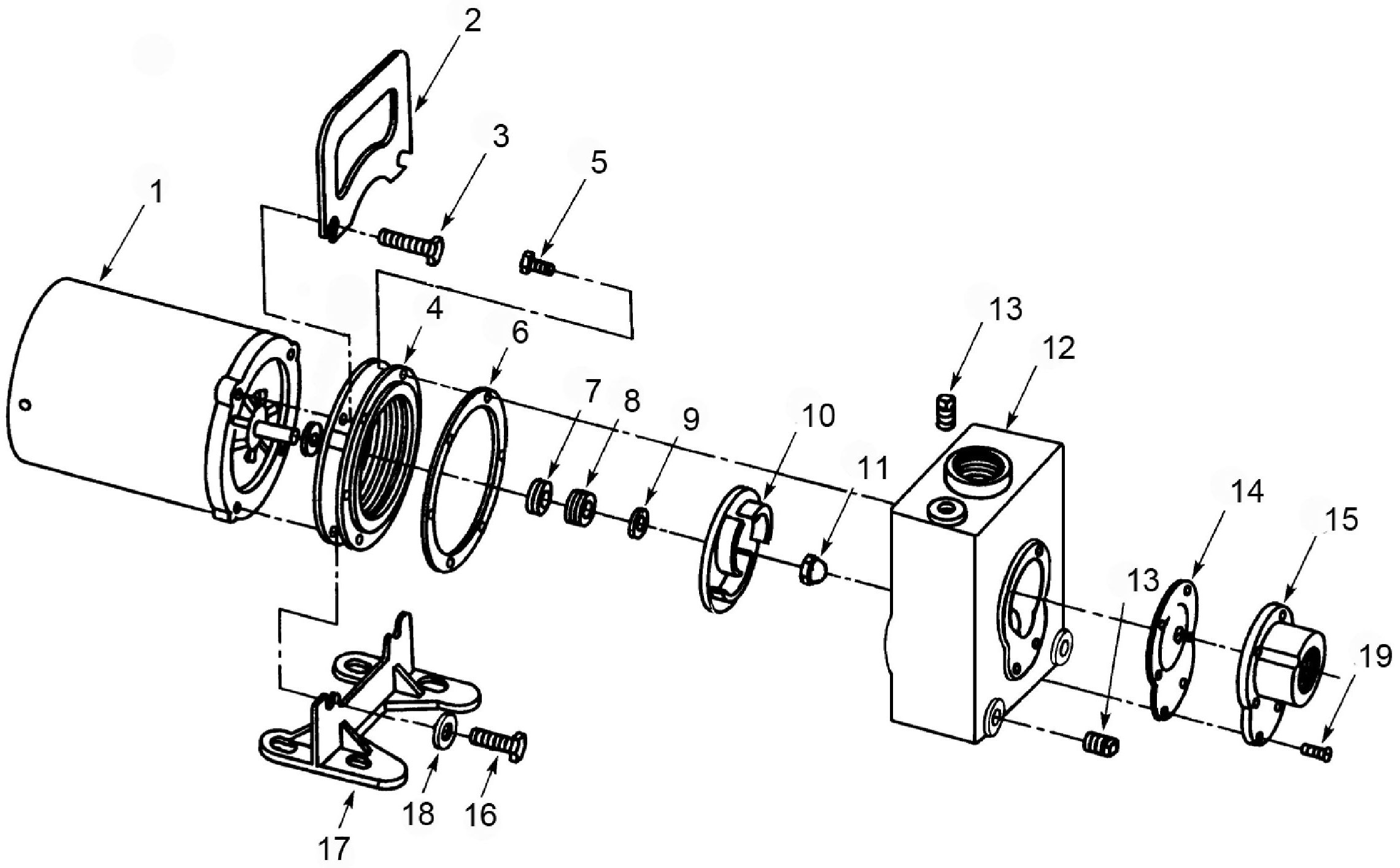

PARTS LIST for AMT Pump model # 276A-98 Pump:
( Click Here for the AMT Pump 276A-98 Product Page )
Item 1
(on image above)
Motor
Motor, 3 Horsepower, 208-230/220 Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 844.02 / each
Item 2
(on image above)
Flinger Washer
$ 9.72 / each
Item 3
(on image above)
Handle
$ 17.82 / each
Item 7
(on image above)
Casing Seal
$ 34.02 / each
Item 89
(on image above)
Seal
Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 58.05 / each
Item 10
(on image above)
Impeller Shim Set
$ 14.85 / each
Item 12
(on image above)
Impeller Fastener
$ 14.85 / each
Item 13
(on image above)
Casing
Casing Kit - Viton
$ 1370.52 / each
Item 15
(on image above)
Flapper Valve Assembly - Viton
$ 116.64 / each
Item 18
(on image above)
Foot
$ 22.95 / each
Item KIT
(on image above)
Seal Kit
Seal Kit - Viton (standard)
$ 165.24 / each
Item KIT
(on image above)
Seal Kit - Viton & Sil. Carb. (optional)
$ 265.68 / each
