AMT Pump model 282A-95 Parts( Click Here for the AMT Pump 282A-95 Product Page ) |
|

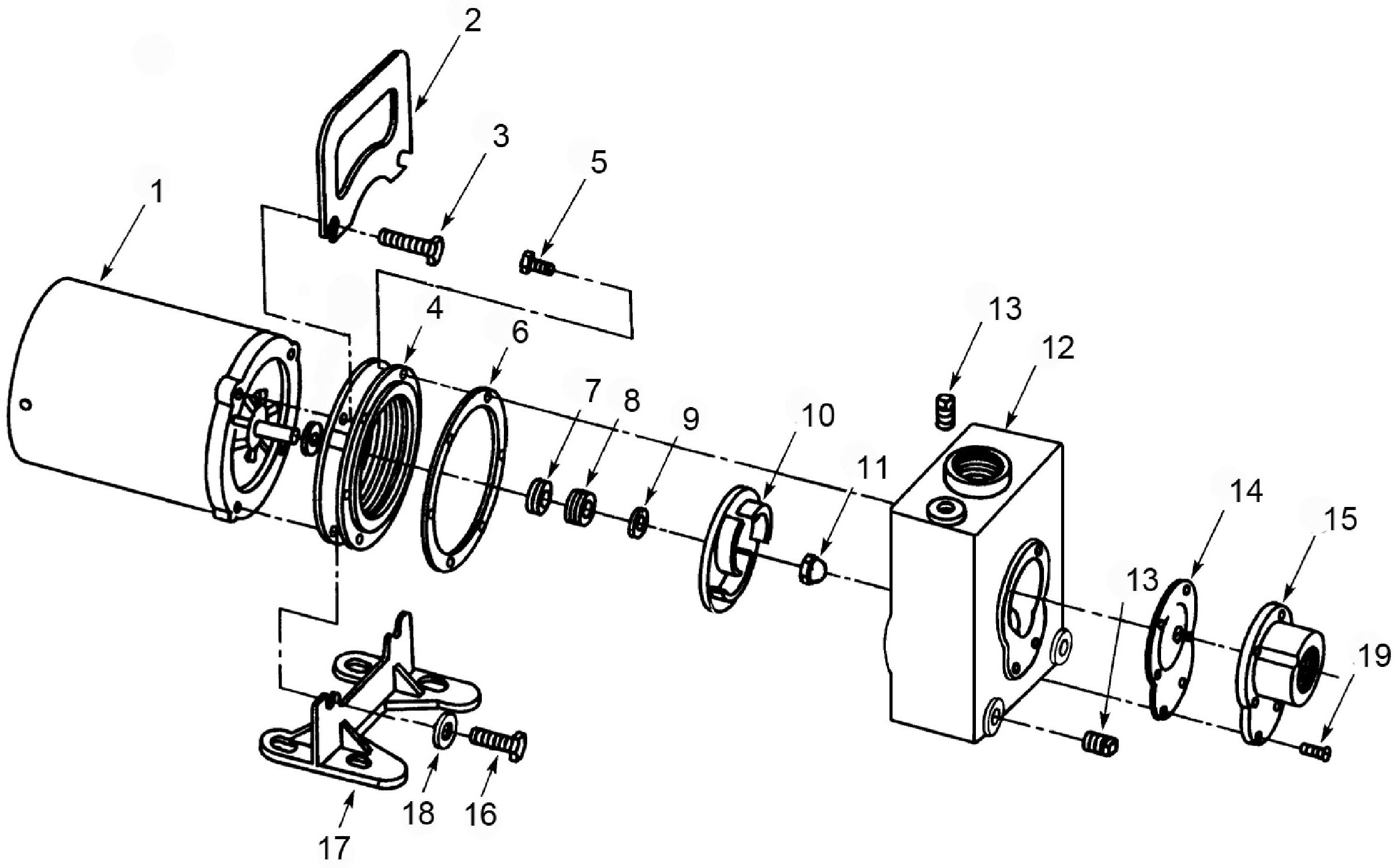

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 282A-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 282A-K5 | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $654.50 | 1 in Stock | 1 | ||
| 1 | # 1626-305-00 | Motor, 2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included) | $708.40 | 1 in Stock | 1 | ||
| 2 | # 1515-000-00 | Handle | $12.10 | 2 in Stock | 1 | ||
| 4 | # 2820-030-95 | Adapter Kit, includes Adapter and Fasteners. | $151.80 | 2 in Stock | 1 | ||
| 7+8 | # 1640-161-90 | Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch | $19.80 | 10 in Stock | 1 | ||
| 9 | # 1657-000-90 | Impeller Shim Set | $12.10 | 3 in Stock | 1 | ||
| 10 | # 2820-011-05 | Impeller - 1 Phase | $55.00 | 2 in Stock | 1 | ||
| 11 | # 1784-001-00 | Impeller Fastener | $12.10 | 2 in Stock | 1 | ||
| 12 | # 2820-001-B5 | Casing Kit - Buna-N | $283.80 | 2 in Stock | 1 | ||
| 14 | # 1674-000-90 | Flapper Valve Assembly - Buna-N | $18.70 | 2 in Stock | 1 | ||
| 17 | # 1506-000-00 | Foot | $18.70 | 2 in Stock | 1 | ||
| KIT | # 2820-304-95 | Seal Kit - Buna-N (standard), includes the Shaft Seal Assembly, Casing Seal, and Flapper Valve Assembly. | $36.30 | 20 in Stock | 1 | ||
