AMT Pump model 282B-98 Parts

PARTS LIST for AMT Pump model # 282B-98 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the AMT Pump 282B-98 Product Page )

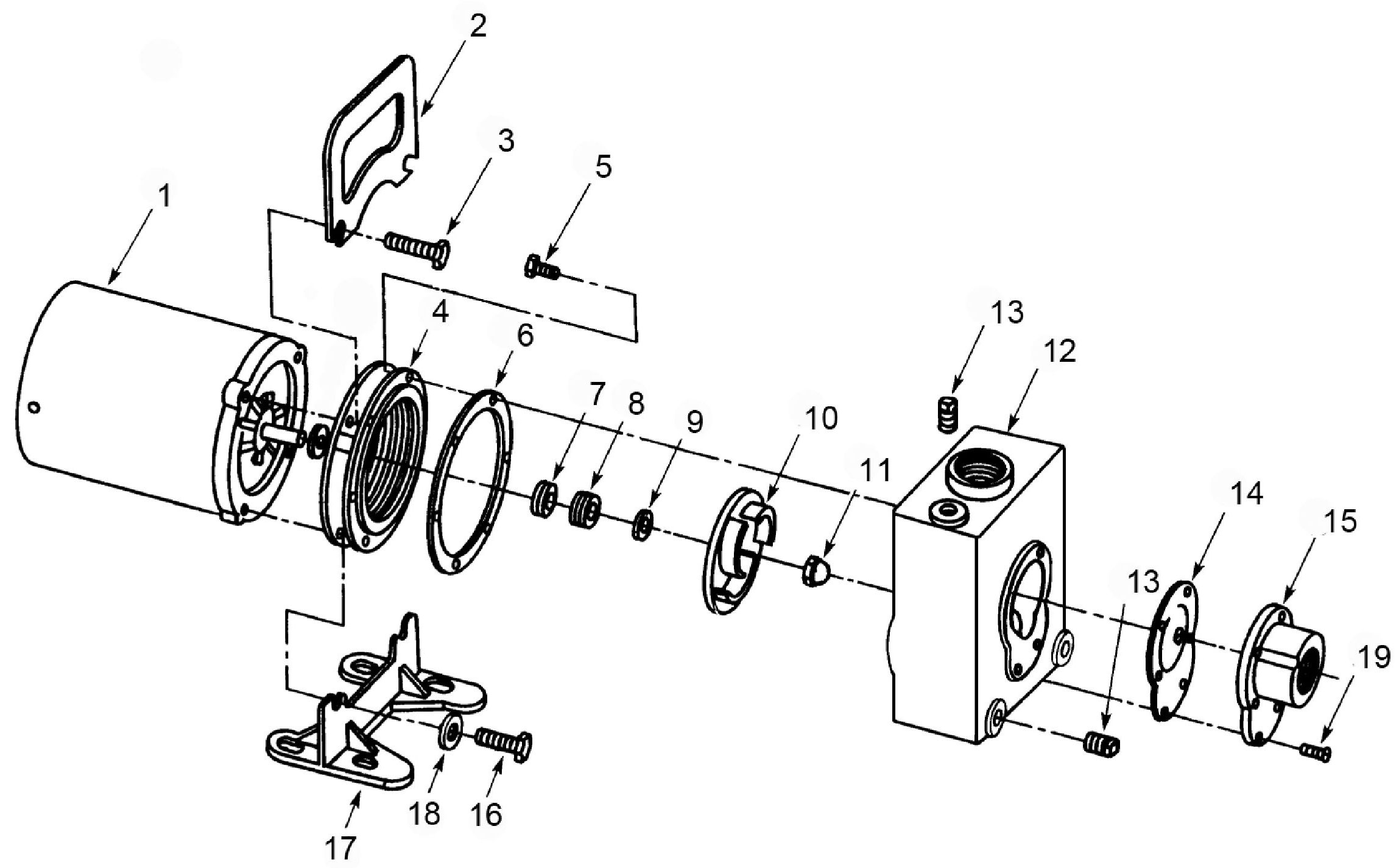

Blowup of 282B-98

Item 2
(on image above)

Part # 1534-000-00

Flinger Washer

$ 9.72 / each

Item 3
(on image above)

Part # 1515-000-00

Handle

$ 17.82 / each

Item 7
(on image above)

Part # 1470-011-00

Casing Seal

$ 34.02 / each

Item 89
(on image above)

Part # 1640-161-91

Seal

Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch

$ 58.05 / each

Item 10
(on image above)

Part # 1657-000-90

Impeller Shim Set

$ 14.85 / each

Item 12
(on image above)

Part # 1784-001-00

Impeller Fastener

$ 14.85 / each

Item 13
(on image above)

Part # 2820-001-V8

Casing

Casing Kit - Viton

$ 1232.82 / each

Item 15
(on image above)

Part # 2820-304-90

Flapper Valve Assembly - Viton

$ 116.64 / each

Item 16
(on image above)

Part # 2820-050-00

Suction Plate

$ 225.18 / each

Item 18
(on image above)

Part # 1506-000-00

Foot

$ 22.95 / each

Item KIT
(on image above)

Part # 2820-304-98

Seal Kit

Seal Kit - Viton (standard)

$ 166.05 / each

Item KIT
(on image above)

Part # 2820-305-98

Seal Kit - Viton & Sil. Carb. (optional)

$ 260.82 / each

Item KIT
(on image above)

Part # 2820-306-98

Seal Kit - EPDM/EPR (optional)

$ 116.64 / each
