AMT Pump model 282L-98 Parts

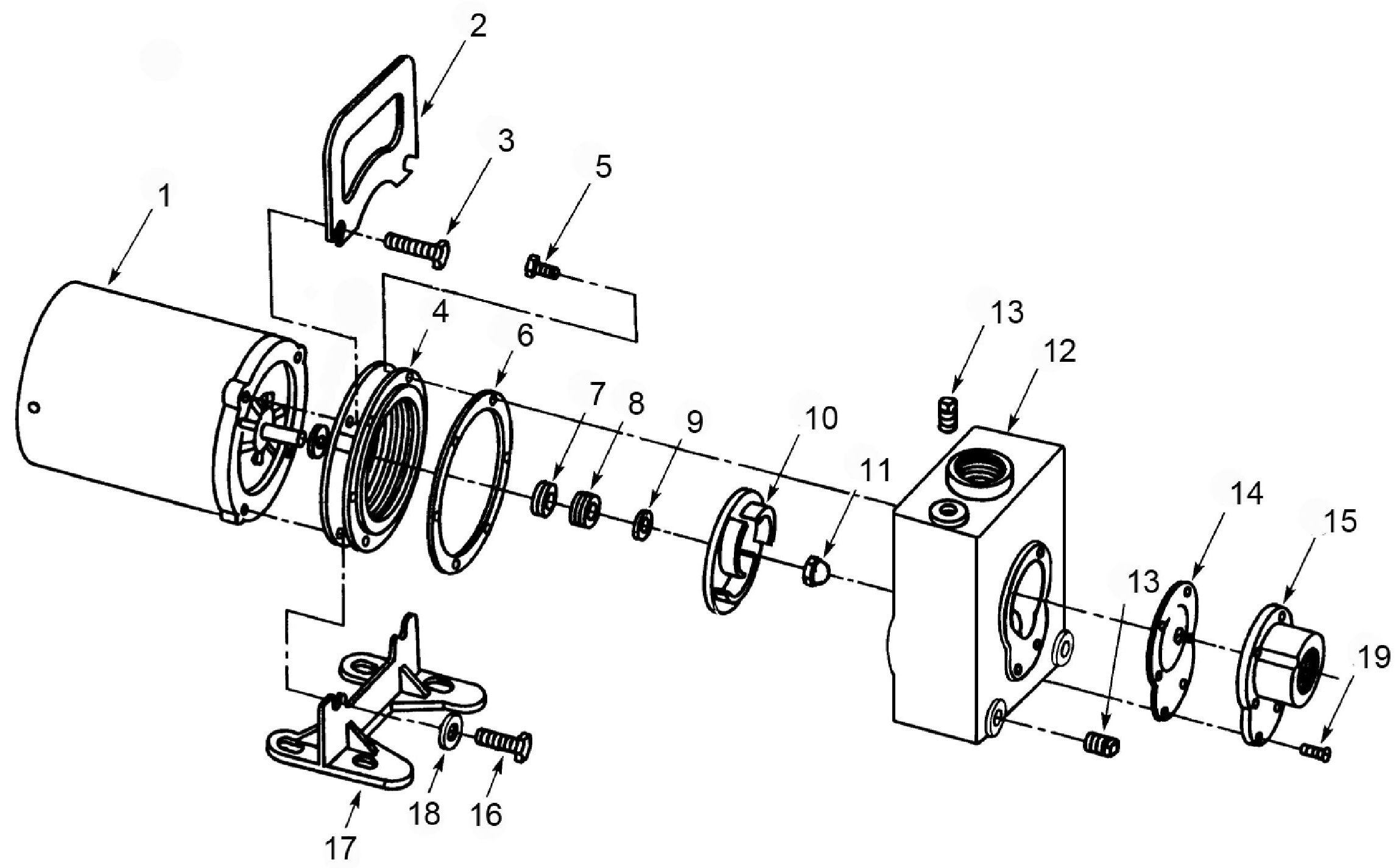

PARTS LIST for AMT Pump model # 282L-98 Pump:
( Click Here for the AMT Pump 282L-98 Product Page )
Item 1
(on image above)
Motor
Motor, 2 Horsepower, Volts, 3 Phase, ODP Open Drip Proof, 60/50 Hz, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 622.08 / each
Item 2
(on image above)
Flinger Washer
$ 9.72 / each
Item 3
(on image above)
Handle
$ 17.82 / each
Item 7
(on image above)
Casing Seal
$ 34.02 / each
Item 89
(on image above)
Seal
Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 58.05 / each
Item 10
(on image above)
Impeller Shim Set
$ 14.85 / each
Item 12
(on image above)
Impeller Fastener
$ 14.85 / each
Item 13
(on image above)
Casing
Casing Kit - Viton
$ 1232.82 / each
Item 15
(on image above)
Flapper Valve Assembly - Viton
$ 116.64 / each
Item 16
(on image above)
Suction Plate
$ 225.18 / each
Item 18
(on image above)
Foot
$ 22.95 / each
Item KIT
(on image above)
Seal Kit
Seal Kit - Viton (standard)
$ 166.05 / each
Item KIT
(on image above)
Seal Kit - Viton & Sil. Carb. (optional)
$ 260.82 / each
Item KIT
(on image above)
Seal Kit - EPDM/EPR (optional)
$ 116.64 / each
