AMT Pump model 2850-99 Parts

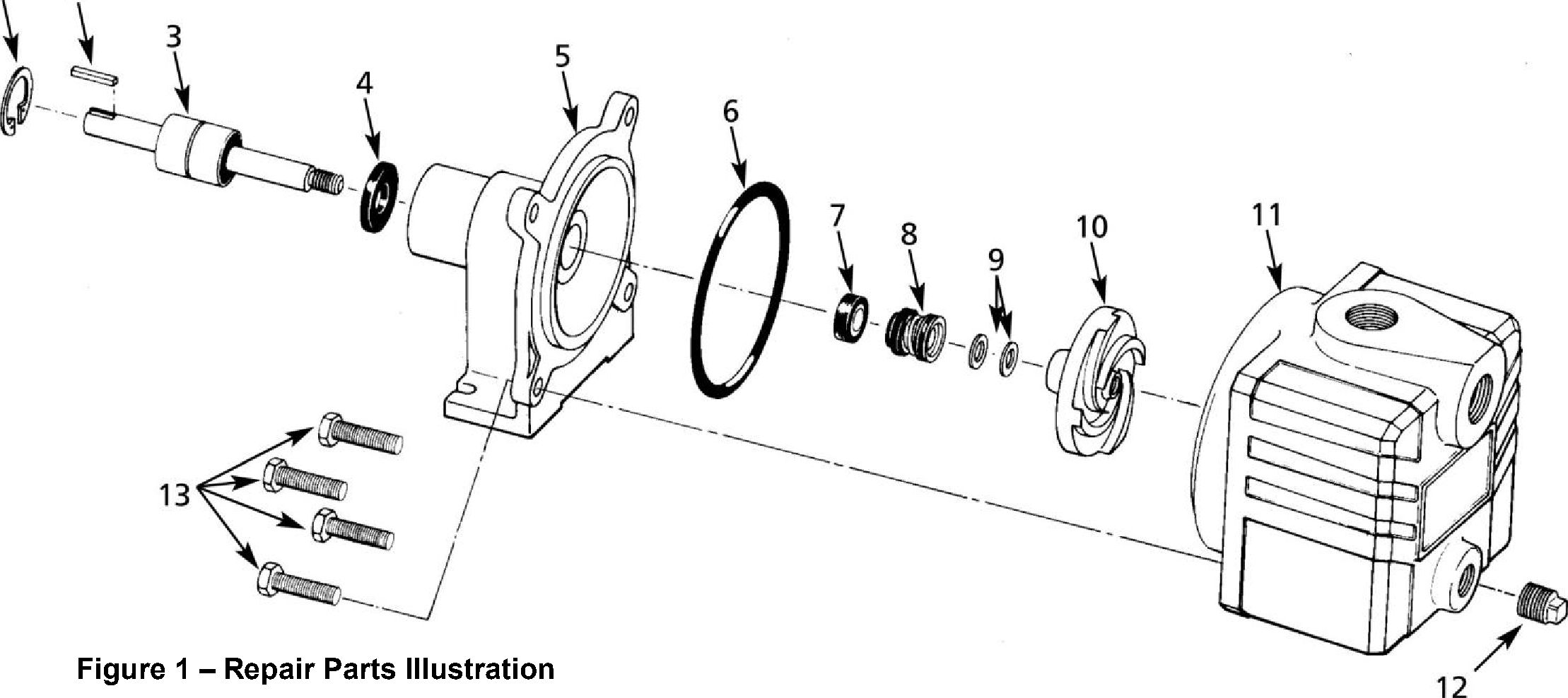

PARTS LIST for AMT Pump model # 2850-99 Pump:
( Click Here for the AMT Pump 2850-99 Product Page )
Item 1
(on image above)
Snap Ring
$ 9.72 / each
Item 2
(on image above)
3/16 Square Shaft Key
$ 9.72 / each
Item 3
(on image above)
Shaft & Bearing Assembly
$ 124.20 / each
Item 4
(on image above)
Slinger Washer (not required)
$ 9.72 / each
Item 5
(on image above)
Bearing Housing/Adapter
$ 205.74 / each
Item 6
(on image above)
Gasket, Buna-N
$ 9.45 / each
Item 6
(on image above)
Gasket, Viton (optional)
$ 28.35 / each
Item 78
(on image above)
Seal
Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 24.30 / each
Item 78
(on image above)
Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 58.05 / each
Item 9
(on image above)
Impeller Shim Kit
$ 14.85 / each
Item 10
(on image above)
Impeller
Impeller
$ 64.80 / each
Item 11
(on image above)
Casing
Casing
$ 298.08 / each
Item A
(on image above)
Bearing Shim Kit (A) Seal assembly available as set only. Includes : Bearing Shim Kit , Seal assembly available as set only (Ref. A)
$ 9.72 / each
