AMT Pump model 285J-95 Parts( Click Here for the AMT Pump 285J-95 Product Page ) |
|

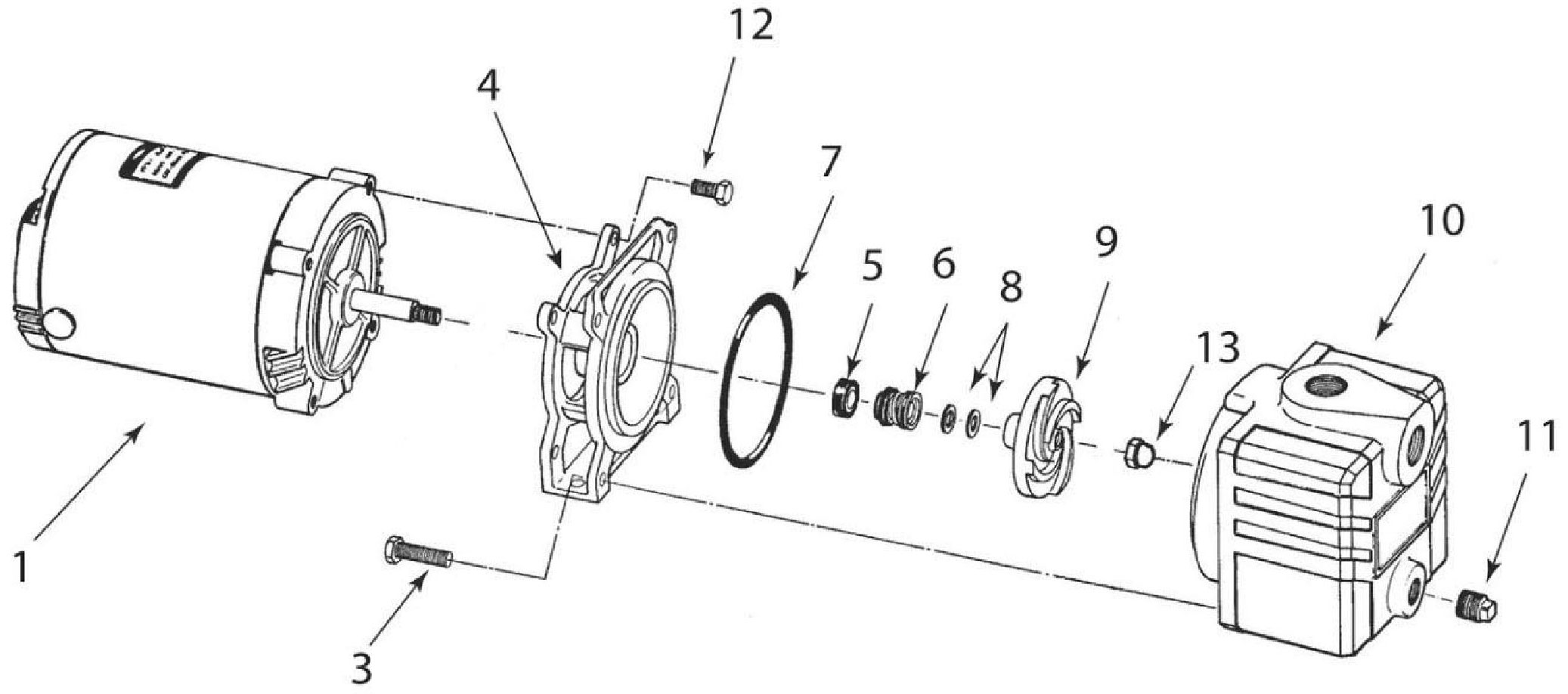

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 285J-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 285J-K5 | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $463.10 | 1 in Stock | 1 | ||
| 1 | # 1627-309-00 | Motor, 1 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included) | $575.30 | 1 in Stock | 1 | ||
| 4 | # 1560-000-00 | Adapter | $105.60 | 2 in Stock | 1 | ||
| 5+6 | # 1640-161-90 | Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch | $19.80 | 10 in Stock | 1 | ||
| 7 | # 1531-000-00 | O-Ring -Buna-N (standard) | $7.70 | 6 in Stock | 1 | ||
| 8 | # 1657-000-90 | Impeller Shim Package | $12.10 | 3 in Stock | 1 | ||
| 9 | # 2850-010-06 | Impeller | $44.00 | 2 in Stock | 1 | ||
| 10 | # 1558-000-02 | Casing | $234.30 | 2 in Stock | 1 | ||
| 13 | # 1784-001-00 | Impeller Nut | $12.10 | 2 in Stock | 1 | ||
