AMT Pump model 285P-95 Parts
PARTS LIST for AMT Pump model # 285P-95 Pump:
( Click Here for the AMT Pump 285P-95 Product Page )

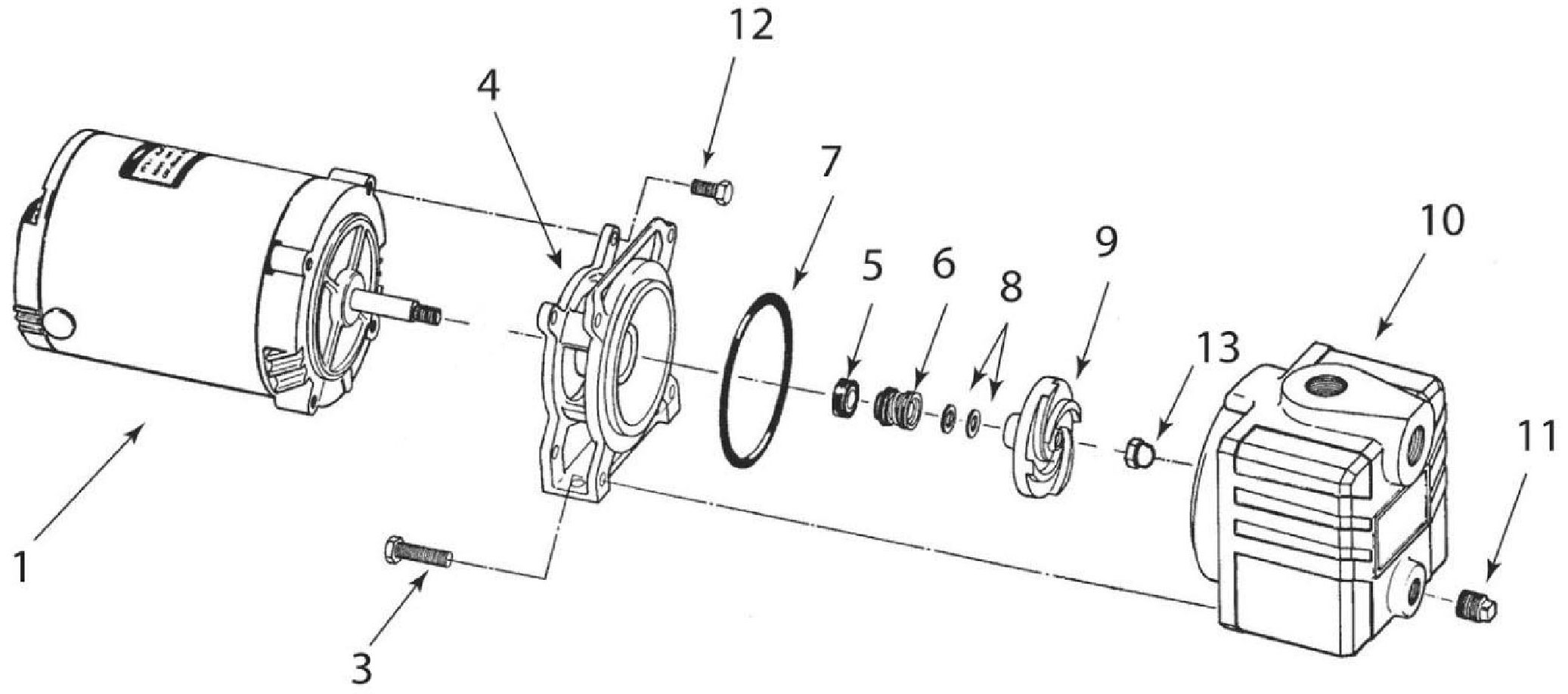

Item 1
(on image above)
Motor
Motor, 3/4 Horsepower, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 513.54 / each
Item 4
(on image above)
Adapter
$ 155.52 / each
Item 56
(on image above)
Seal
Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 24.30 / each
Item 56
(on image above)
Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 58.05 / each
Item 56
(on image above)
Mechanical Seal, Viton/Silicon Carbide, Type 16, size 5/8 Inch
$ 103.95 / each
Item 7
(on image above)
O-Ring -Buna-N (standard)
$ 9.45 / each
Item 7
(on image above)
O-Ring -Viton (optional)
$ 28.35 / each
Item 8
(on image above)
Impeller Shim Package
$ 14.85 / each
Item 9
(on image above)
Impeller
Impeller
$ 54.00 / each
Item 10
(on image above)
Casing
Casing
$ 298.08 / each
Item 13
(on image above)
Impeller Nut
$ 14.85 / each
Item 14
(on image above)
Impeller Seal Washer
$ 8.10 / each
