AMT Pump model 2ES30C-3P Parts( Click Here for the AMT Pump 2ES30C-3P Product Page ) |
|

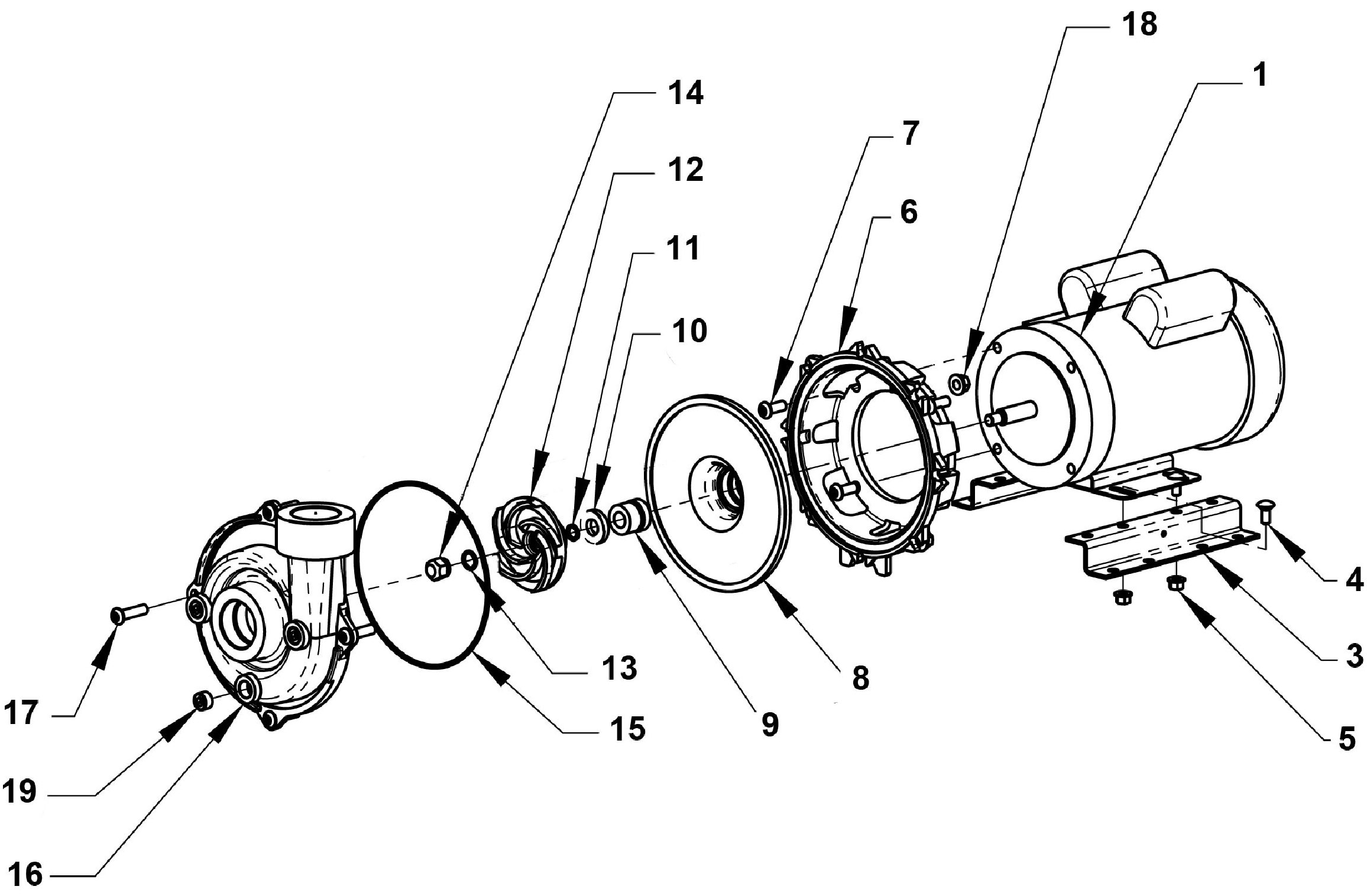

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 2ES30C-3P | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 2ES3-KC | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $583.00 | 1 in Stock | 1 | ||
| 1 | # 1627-312-00 | Motor, 3 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included) | $748.00 | 1 in Stock | 1 | ||
| 2 | # 1506-101-90 | 56 Frame Base Kit, includes Base, and Fasteners. | $27.50 | 2 in Stock | 1 | ||
| 6 | # 1A11-030-95 | Adapter Kit, includes motor Adapter, and Fasteners. | $60.50 | 2 in Stock | 1 | ||
| 8 | # 1A11-020-95 | Mechanical Seal, Type 6, size 5/8 Inch | $55.00 | 5 in Stock | 1 | ||
| 9 | # 1641-161-91 | EPDM/EPR Seal Assembly | $61.60 | 5 in Stock | 1 | ||
| 10 | # 1A11-019-00 | Seal Spacer | $24.20 | 5 in Stock | 1 | ||
| 12 | # 1A3D-010-95 | Impeller Kit, includes Impeller, Impeller Shim, Impeller Lock Nut. | $77.00 | 2 in Stock | 1 | ||
| 16 | # 2A3D-002-95 | Casing Kit, includes Casing, Plugs, and Fasteners. | $165.00 | 2 in Stock | 1 | ||
| KIT | # 2A01-301-90 | O-Ring Kit, EPDM | $13.20 | 2 in Stock | 1 | ||
