AMT Pump model 2G4XACR Parts

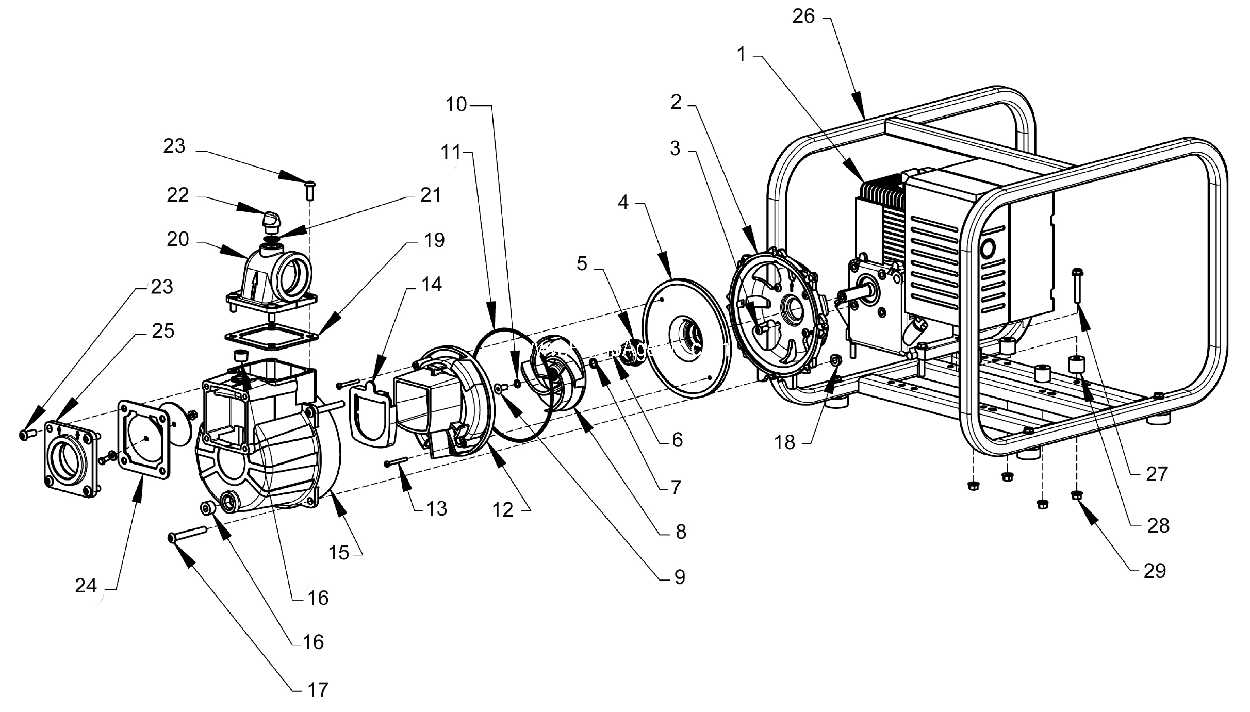

PARTS LIST for AMT Pump model # 2G4XACR Pump:
( Click Here for the AMT Pump 2G4XACR Product Page )
Item 1
(on image above)
Engine
$ 604.26 / each
Item 2
(on image above)
Bracket/Adapter Kit. Includes : Bracket/Adapter Kit (Ref. 2), 5/16-24 x 3/4 Hex Flange Screw (Ref. 3)
$ 132.84 / each
Item 4
(on image above)
Seal Plate
$ 132.84 / each
Item 5
(on image above)
Seal
Mechanical Seal, EPDM, Type 6A, size 3/4 Inch
$ 41.85 / each
Item 7
(on image above)
Impeller Shim Kit
$ 9.72 / each
Item 8
(on image above)
Impeller
Impeller Kit. Includes : Shaft Key (Ref. 6), Impeller Shim Kit (Ref. 7), Impeller Kit (Ref. 8), 5/16-24 x 3/4 Flat Head Socket Screw (Ref. 9)
$ 124.74 / each
Item 12
(on image above)
Volute Kit. Includes : Volute Kit (Ref. 12), 10-24 x 2SS HD Screw (Ref. 13)
$ 165.24 / each
Item 15
(on image above)
Casing
Casing Kit. Includes : Casing Kit (Ref. 15), 1/2 Pipe Plug (Ref. 16), 3/8-16 x 3 Button Head Screw (Ref. 17), 3/8-16 Flange Hex Nut (Ref. 18)
$ 314.28 / each
Item 20
(on image above)
Discharge Manifold Kit. Includes : Discharge Manifold Kit (Ref. 20), 3/8-16 x 1 Button Head Screw (Ref. 23)
$ 124.74 / each
Item 24
(on image above)
Flapper Valve Assembly
$ 50.22 / each
Item 25
(on image above)
Suction Flange Kit. Includes : 3/8-16 x 1 Button Head Screw (Ref. 23), Suction Flange Kit (Ref. 25)
$ 74.52 / each
Item 30
(on image above)
Frame Hardware Kit
$ 27.54 / each
Item KIT
(on image above)
EPDM O-Ring/Gasket/Shaft Seal Kit. Includes : Shaft Seal Assembly (Ref. 5), 109 O-Ring (Ref. 10), 263 O-Ring (Ref. 11), Volute Gasket (Ref. 14), Discharge Gasket (Ref. 19), 117 O-Ring (Ref. 21), 1/2 NPT Fill Plug (Ref. 22)
$ 82.62 / each
Item NS
(on image above)
Strainer (not shown)
$ 27.54 / each
