AMT Pump model 2SP30C-1P Parts( Click Here for the AMT Pump 2SP30C-1P Product Page ) |
|

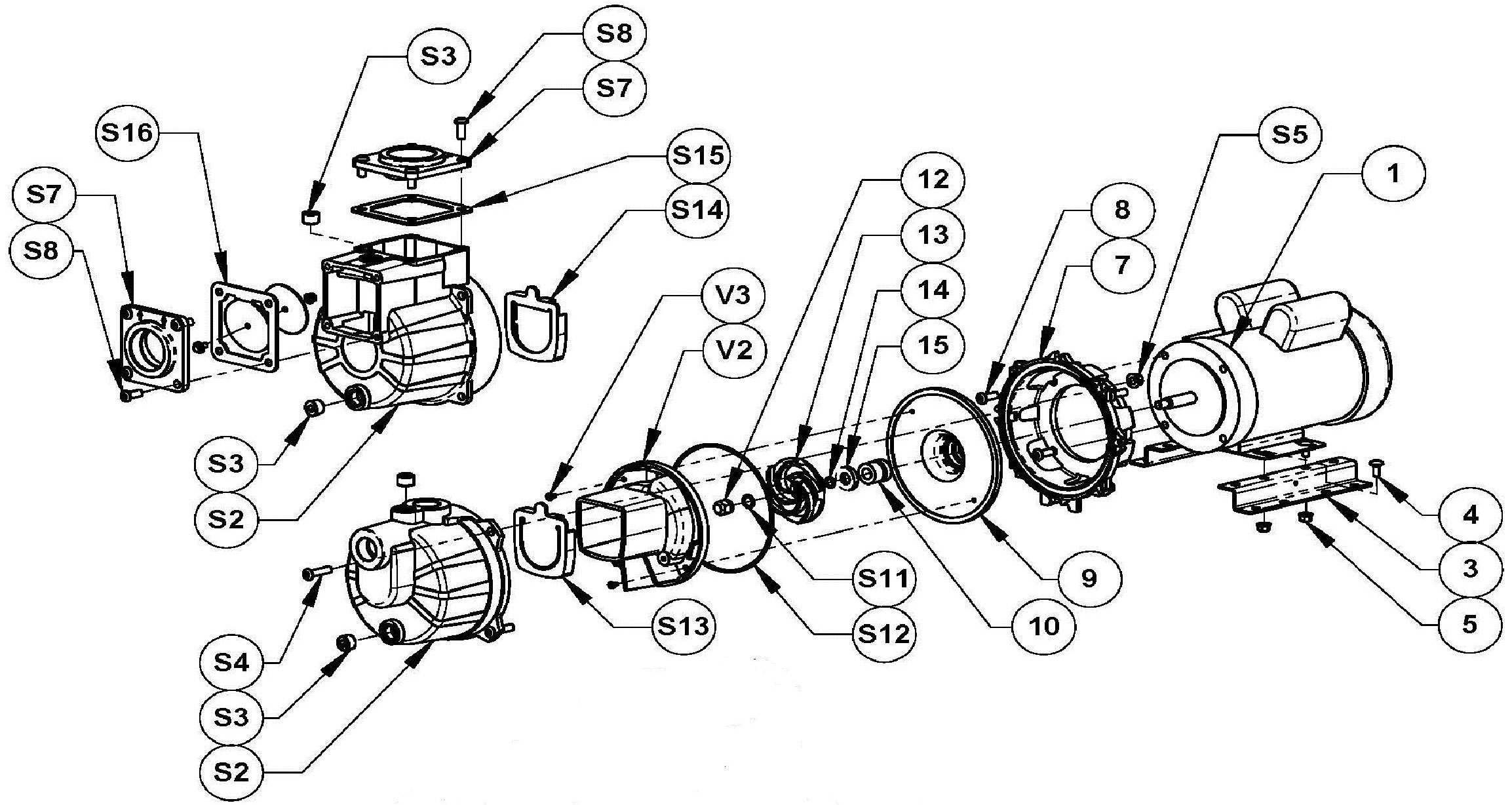

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 2SP30C-1P | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 2SP3-KC | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $827.20 | 1 in Stock | 1 | ||
| 1 | # 1626-306-00 | Motor, 3 Horsepower, 208-230/220 Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric motor only (pump is not included) | $850.30 | 1 in Stock | 1 | ||
| 3 | # 1506-101-90 | 56 Frame Base Kit | $27.50 | 2 in Stock | 1 | ||
| 7 | # 1A11-030-95 | Adapter Kit | $60.50 | 2 in Stock | 1 | ||
| 9 | # 1A11-020-95 | Mechanical Seal, Type 6, size 5/8 Inch | $55.00 | 5 in Stock | 1 | ||
| 10 | # 1641-161-91 | EPDM/EPR Seal Assembly | $61.60 | 5 in Stock | 1 | ||
| 13 | # 1A3D-010-95 | Impeller Kit | $77.00 | 2 in Stock | 1 | ||
| 15 | # 1A11-019-00 | Seal Spacer | $24.20 | 5 in Stock | 1 | ||
| S2 | # 1A31-001-95 | Casing Kit | $220.00 | 2 in Stock | 1 | ||
| S7 | # 1A41-050-95 | Flange NPT Kit. 2 Flanges and Required Fasteners are in each Kit. | $58.30 | 2 in Stock | 1 | ||
| S14 | # 1A31-306-90 | O-ring & Gasket EPDM Kit | $25.30 | 20 in Stock | 1 | ||
| S15 | # 1A31-305-90 | Discharge Flange Gasket EPDM | $16.50 | 20 in Stock | 1 | ||
| S16 | # 2GXE-070-90 | Flapper EPDM Kit | $34.10 | 2 in Stock | 1 | ||
| V2 | # 1A3D-150-95 | Volute Kit, includes Volute, and Fasteners. | $99.00 | 2 in Stock | 1 | ||
