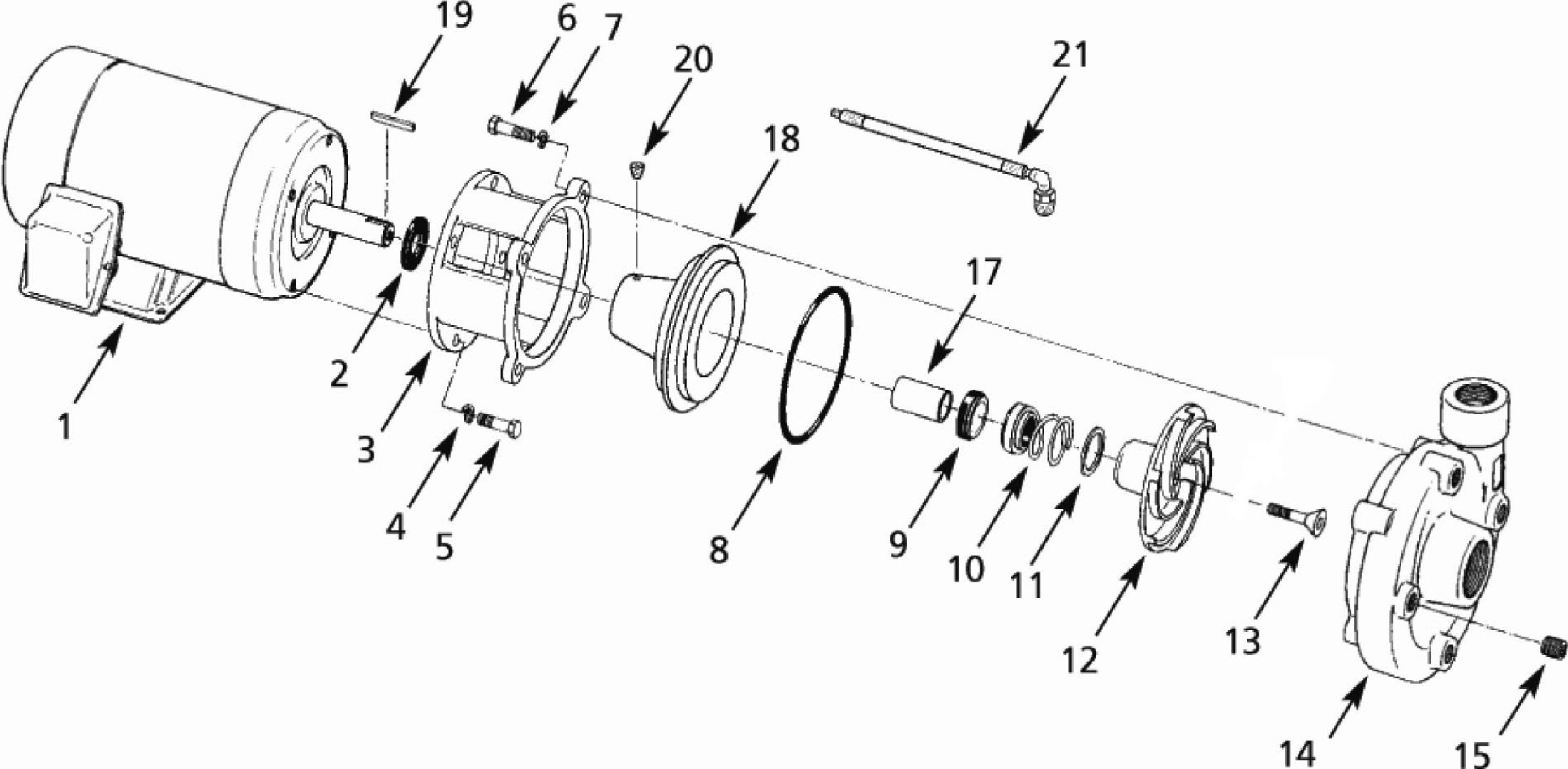

Parts for AMT Pump model # 3157-95

Item 1
(on image above)

Motor

Motor, 2 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)

$ 678.78 / each

Item 11
(on image above)

Part # 1806-044-90

Impeller Shim Kit

$ 8.10 / each

Item 13
(on image above)

Part # 1784-001-00

Impeller Fastener

$ 14.85 / each

Item 14
(on image above)

Part # 3156-001-95

Casing

Casing - Cast Iron. Includes : Fastener (Ref. 6), Washer (Ref. 7), Casing - Cast Iron (Ref. 14), Pipe Plug (Ref. 15)

$ 660.96 / each

Item 21
(on image above)

Part # 4261-170-00

Hose (optional for pumps w/ seal wash)

$ 157.14 / each

Item KIT
(on image above)

Part # 3156-300-94

Seal Kit

Seal Kit - Buna N (standard Cast Iron). Includes : O-Ring (Ref. 8), O-Ring (Ref. 16)

$ 45.36 / each

Item KIT
(on image above)

Part # 3156-300-93

Seal Kit - Buna N & Sil. Carb. (optional)

$ 111.78 / each

AMT Pump model 3157-95 Parts
