AMT Pump model 3157-98 Parts

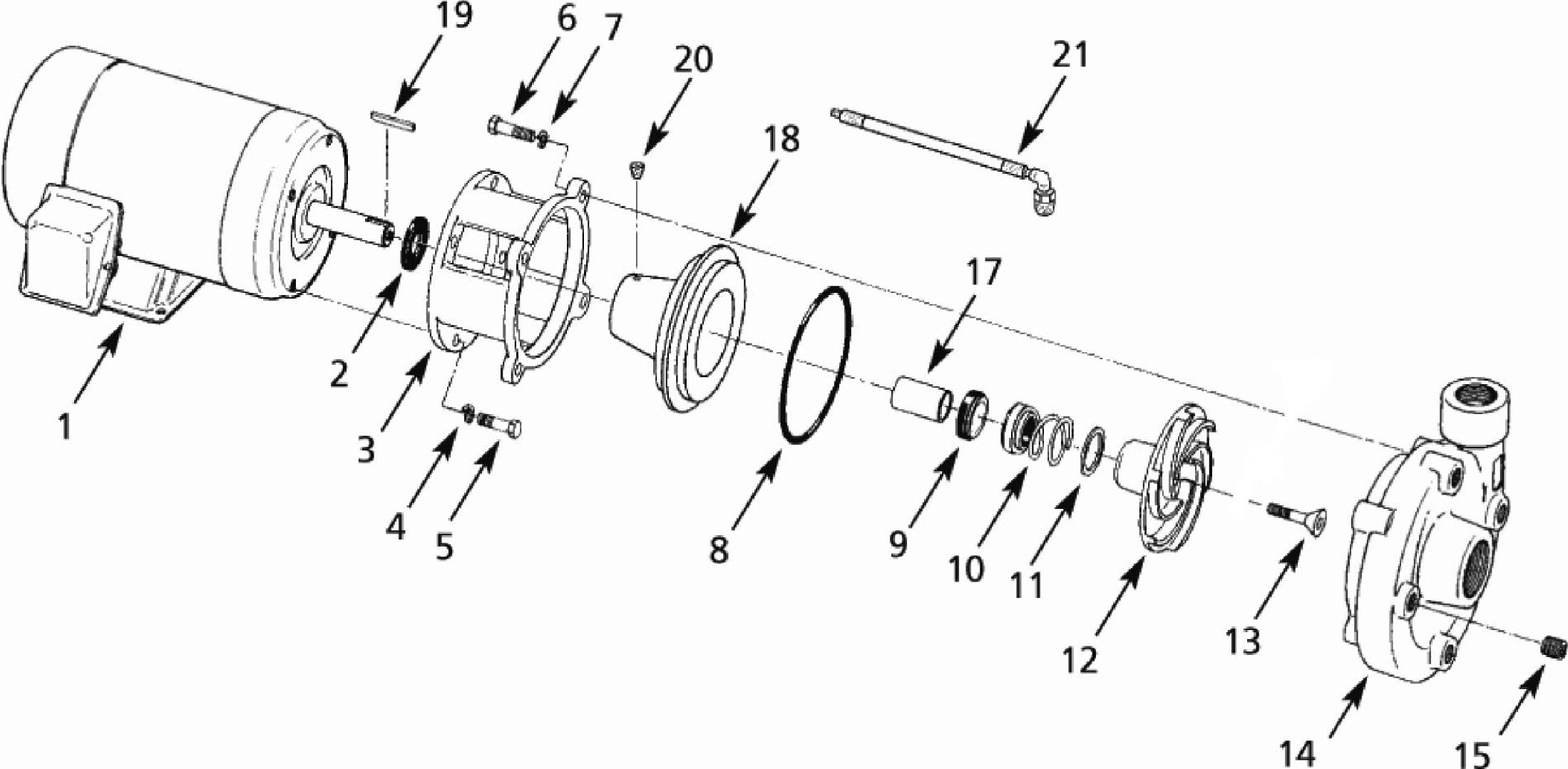

PARTS LIST for AMT Pump model # 3157-98 Pump:
( Click Here for the AMT Pump 3157-98 Product Page )
Item 1
(on image above)
Motor
Motor, 2 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 678.78 / each
Item 3
(on image above)
Adapter - Stainless Steel
$ 388.80 / each
Item 11
(on image above)
Impeller Shim Kit
$ 8.10 / each
Item 13
(on image above)
Impeller Fastener
$ 14.85 / each
Item 14
(on image above)
Casing
Casing - Stainless Steel. Includes : Fastener (Ref. 6), Washer (Ref. 7), Casing - Cast Iron (Ref. 14), Pipe Plug (Ref. 15)
$ 1074.06 / each
Item 21
(on image above)
Hose (optional for pumps w/ seal wash)
$ 157.14 / each
Item KIT
(on image above)
Seal Kit
Seal Kit - Viton (standard Bronze & SS). Includes : O-Ring (Ref. 8), O-Ring (Ref. 16)
$ 74.52 / each
Item KIT
(on image above)
Seal Kit - Viton & Sil. Carb. (optional)
$ 124.74 / each
