AMT Pump model 315E-94 Parts

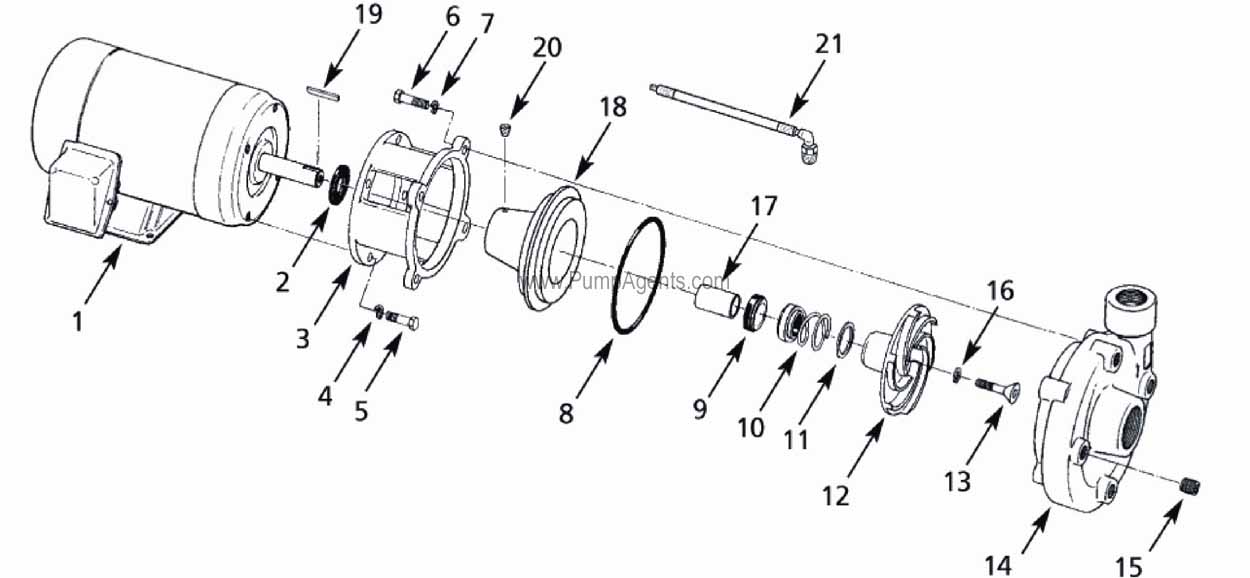

PARTS LIST for AMT Pump model # 315E-94 Pump:
( Click Here for the AMT Pump 315E-94 Product Page )
Item 1
(on image above)
Motor
Motor, 5 Horsepower, Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60 Hz, Nema 184JM Frame, replacement electric motor only (pump is not included)
$ 2041.20 / each
Item 2
(on image above)
Slinger Washer
$ 8.10 / each
Item 3
(on image above)
Adapter - Bronze
$ 231.66 / each
Item 11
(on image above)
Impeller Shim Kit
$ 16.20 / each
Item 12
(on image above)
Impeller
Impeller
$ 463.32 / each
Item 13
(on image above)
Impeller Fastener
$ 9.72 / each
Item 14
(on image above)
Casing
Casing - Bronze. Includes : Fastener (Ref. 6), Washer (Ref. 7), Casing - Cast Iron (Ref. 14), Pipe Plug (Ref. 15)
$ 1239.30 / each
Item 17
(on image above)
Shaft Sleeve
$ 45.90 / each
Item 18
(on image above)
Casing Cover- Bronze
$ 578.34 / each
Item 19
(on image above)
Impeller Key
$ 9.72 / each
Item 21
(on image above)
Hose (optional for pumps w/ seal wash)
$ 157.14 / each
Item KIT
(on image above)
Seal Kit
Seal Kit - Viton (standard Bronze & SS). Includes : O-Ring (Ref. 8), O-Ring (Ref. 16)
$ 149.04 / each
Item KIT
(on image above)
Seal Kit - Viton & Sil. Carb. (optional)
$ 162.00 / each
Item KIT
(on image above)
Seal Kit - EPR-EPDM (optional)
$ 116.64 / each
