AMT Pump model 315E-98 Parts( Click Here for the AMT Pump 315E-98 Product Page ) |
|

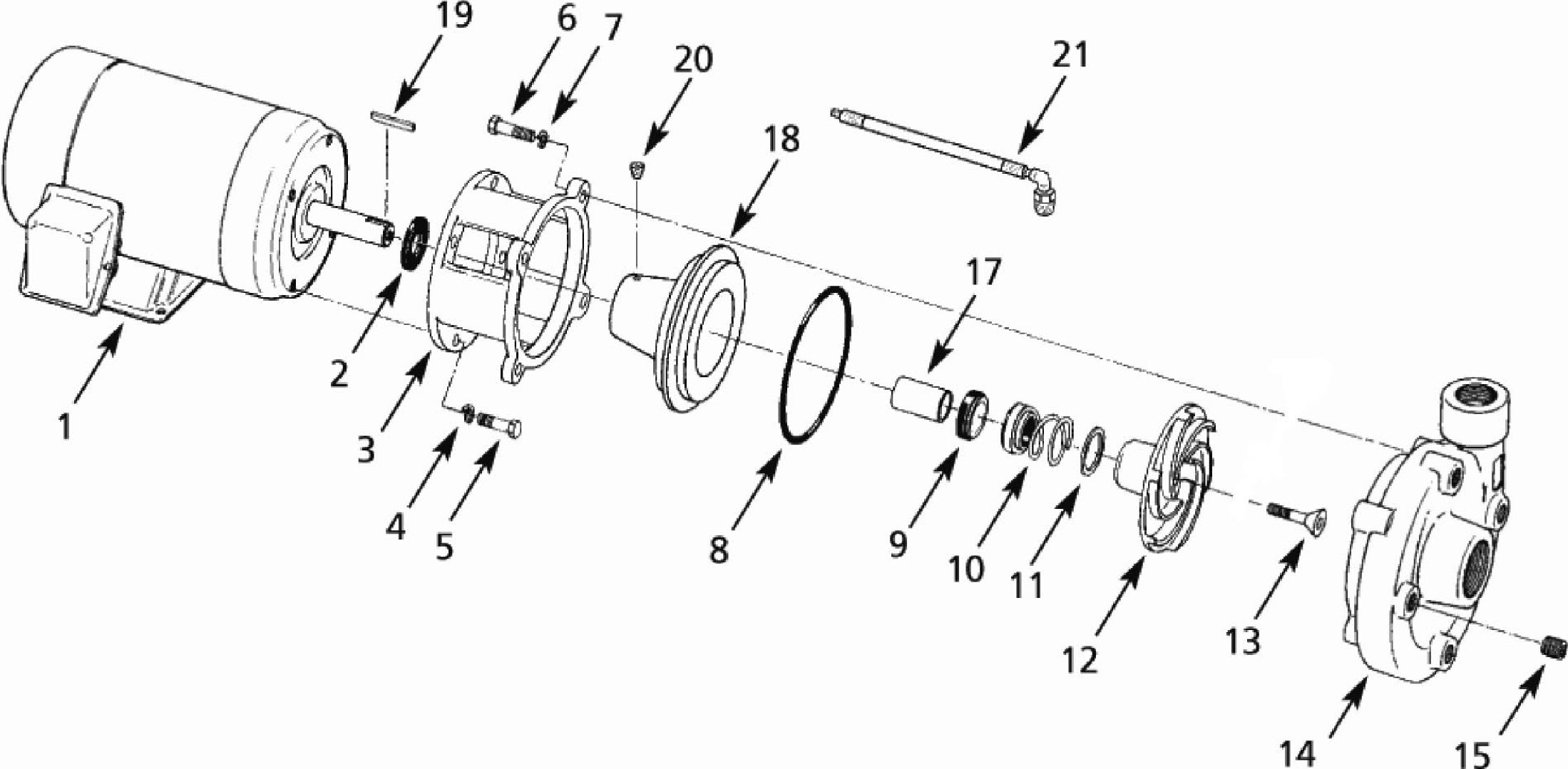

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 315E-98 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 315E-K8 | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $1635.70 | 1 in Stock | 1 | ||
| 1 | # 1626-078-00 | Motor, 5 Horsepower, Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60 Hz, Nema 184JM Frame, replacement electric motor only (pump is not included) | $1740.20 | 1 in Stock | 1 | ||
| 2 | # 1470-093-00 | Slinger Washer | $6.60 | 4 in Stock | 1 | ||
| 3 | # 3150-033-00 | Adapter - Stainless Steel | $157.30 | 2 in Stock | 1 | ||
| 11 | # 1664-000-90 | Impeller Shim Kit | $20.90 | 2 in Stock | 1 | ||
| 12 | # 3152-013-00 | Impeller | $314.60 | 2 in Stock | 1 | ||
| 13 | # 1759-003-00 | Impeller Fastener | $6.60 | 2 in Stock | 1 | ||
| 14 | # 3150-003-98 | Casing - Stainless Steel, includes Casing, Fasteners, and Pipe Plug. | $729.30 | 2 in Stock | 1 | ||
| 17 | # 1555-142-00 | Shaft Sleeve | $37.40 | 10 in Stock | 1 | ||
| 18 | # 3150-023-09 | Casing Cover - Stainless Steel | $392.70 | 5 in Stock | 1 | ||
| 19 | # 1471-030-00 | Impeller Key | $6.60 | 4 in Stock | 1 | ||
| 21 | # 4261-170-00 | Hose (optional for pumps w/ seal wash) | $216.70 | 5 in Stock | 1 | ||
| KIT | # 3150-300-91 | Seal Kit - Viton (standard with Stainless Steel Pumps), includes Shaft Seal, and O-Ring. | $101.20 | 5 in Stock | 1 | ||
