AMT Pump model 316A-95 Parts

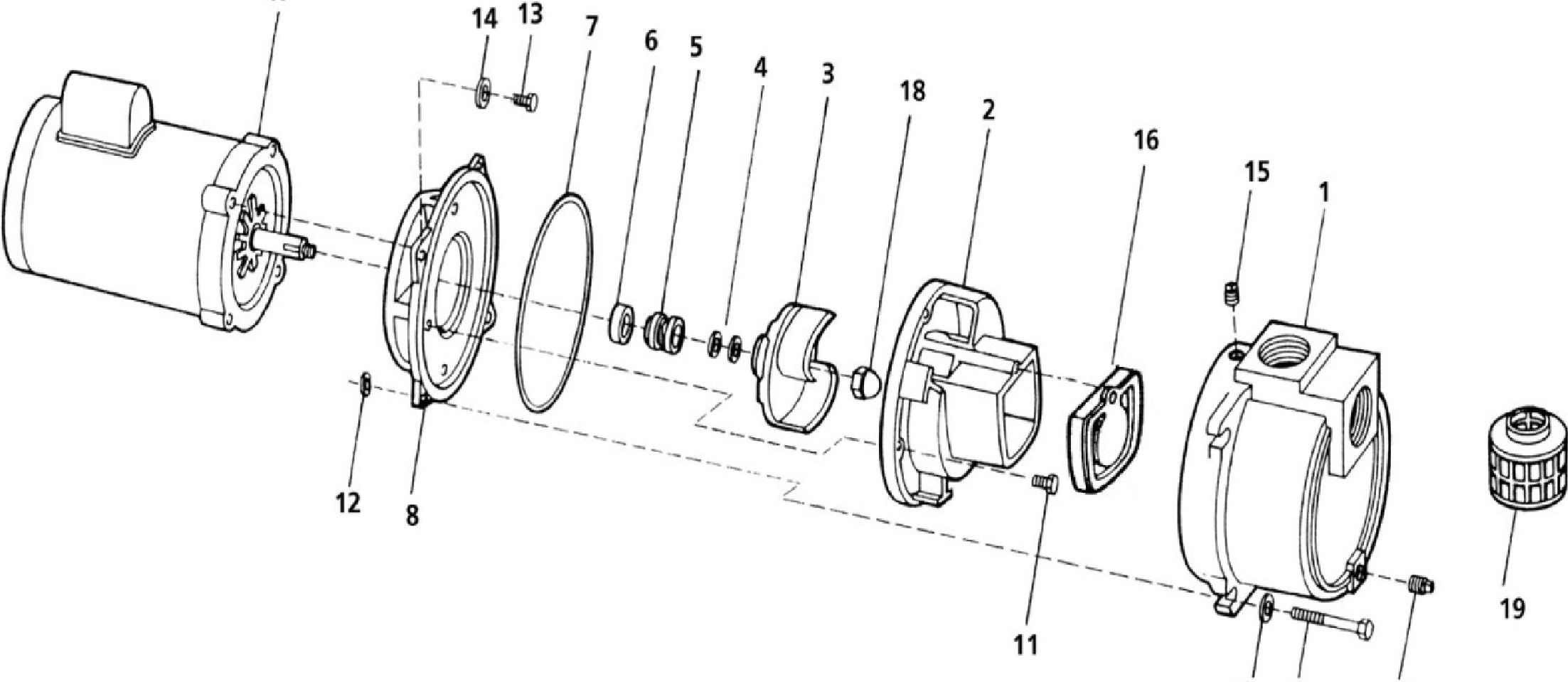

PARTS LIST for AMT Pump model # 316A-95 Pump:
To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the AMT Pump 316A-95 Product Page )
Item 1
(on image above)
Casing
Casing
$ 362.88 / each
Item 2
(on image above)
Volute
$ 140.94 / each
Item 4
(on image above)
Impeller Shim Set
$ 8.10 / each
Item 56
(on image above)
Seal
Mechanical Seal, Viton/Silicon Carbide, Type 21, size 5/8 Inch
$ 94.50 / each
Item 8
(on image above)
Adapter
$ 215.46 / each
Item 18
(on image above)
Impeller Lock Nut
$ 14.85 / each
Item 19
(on image above)
Suction Strainer
$ 27.54 / each
Item 21
(on image above)
Gasket Kit - Buna-N. Includes : O-Ring - Buna-N (Ref. 7), Flapper Valve Assembly - Buna-N (Ref. 16)
$ 50.22 / each
