AMT Pump model 316B-95 Parts( Click Here for the AMT Pump 316B-95 Product Page ) |
|

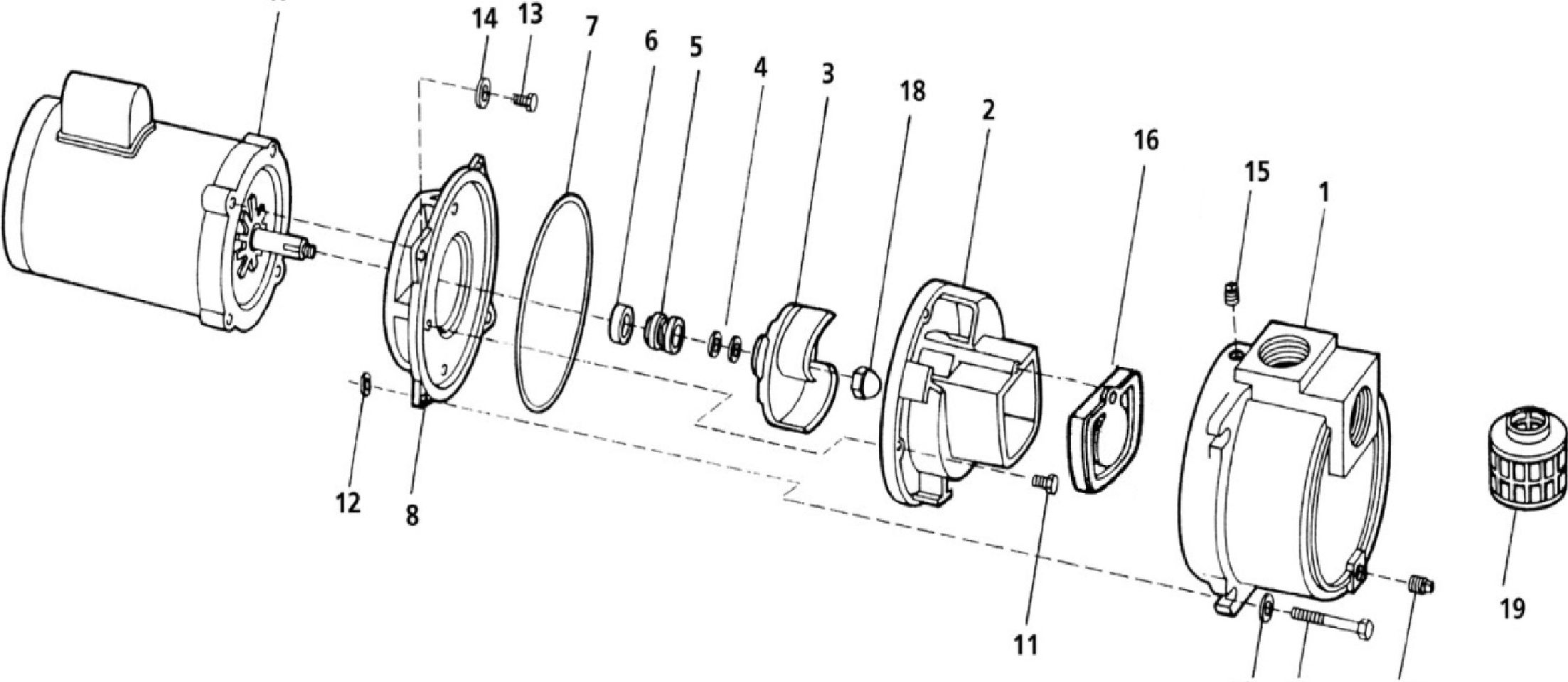

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 316B-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 316B-K5 | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $1205.60 | 1 in Stock | 1 | ||
| 1 | # 3163-002-95 | Casing Kit, includes Casing, Hex Head Bolts, Hex Nuts, and Pipe Plug. | $231.00 | 2 in Stock | 1 | ||
| 2 | # 3163-150-95 | Volute Kit, includes Volute, and Socket Head Cap Screw. | $113.30 | 2 in Stock | 1 | ||
| 3 | # 316A-011-98 | Impeller Kit, includes Impeller, Impeller Shim Set, and Impeller Lock Nut. | $143.00 | 2 in Stock | 1 | ||
| 4 | # 1806-044-90 | Impeller Shim Set | $6.60 | 3 in Stock | 1 | ||
| 5+6 | # 1640-165-90 | Mechanical Seal, Viton/Silicon Carbide, Type 21, size 5/8 Inch | $77.00 | 8 in Stock | 1 | ||
| 8 | # 316A-030-95 | Adapter Kit, includes Adapter, Hex Head Cap Screws, and Lock Washers. | $149.60 | 2 in Stock | 1 | ||
| 17 | # 1626-306-00 | Motor, 3 Horsepower, 208-230/220 Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric motor only (pump is not included) | $850.30 | 1 in Stock | 1 | ||
| 19 | # 1679-001-00 | Suction Strainer | $24.20 | 2 in Stock | 1 | ||
| 20 | # 3163-300-90 | Gasket Kit - Buna-N, includes O-Ring, and Flapper Valve Assembly. | $34.10 | 20 in Stock | 1 | ||
