AMT Pump model 316F-99 Parts
PARTS LIST for AMT Pump model # 316F-99 Pump:
( Click Here for the AMT Pump 316F-99 Product Page )
Item 3

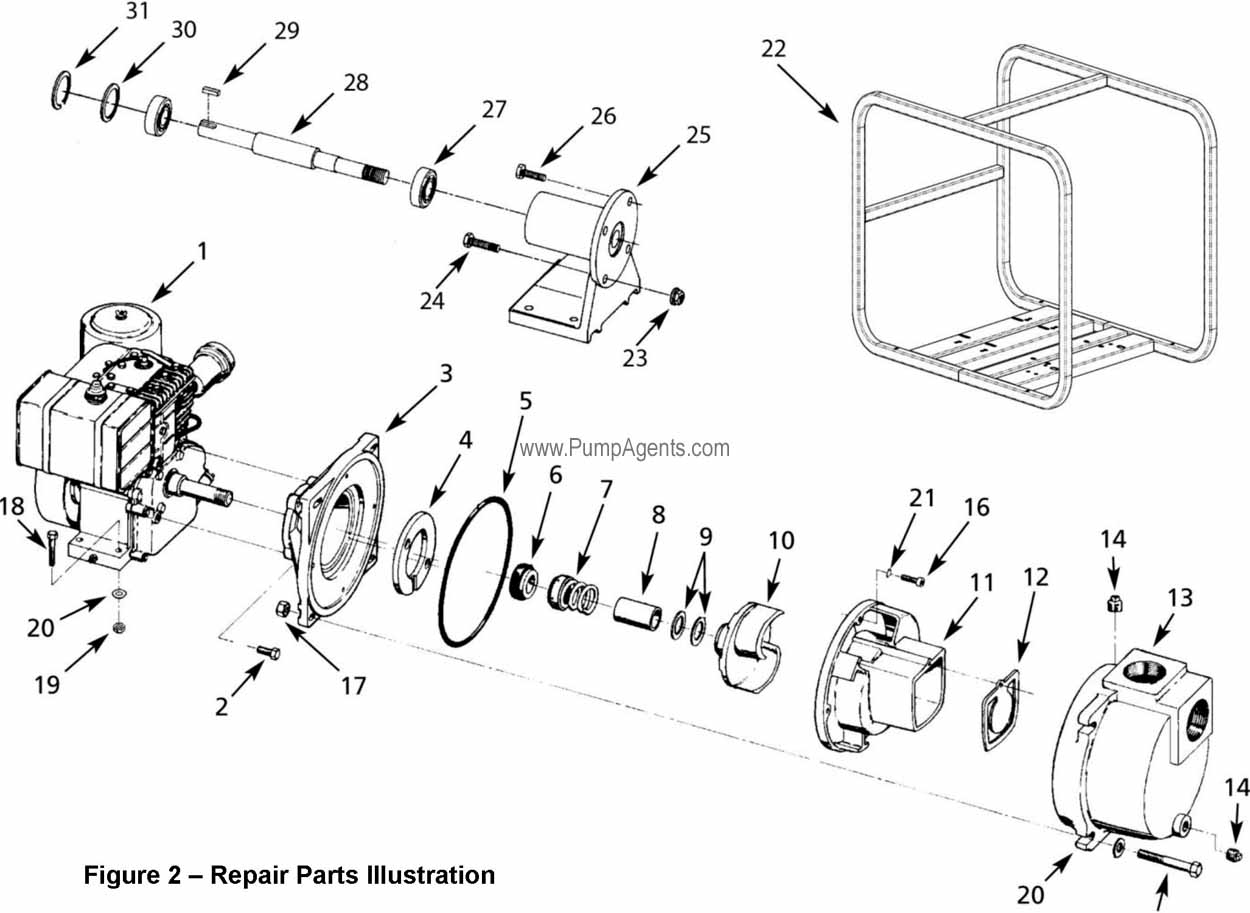

(on image above)
Adapter
$ 215.46 / each
Item 4
(on image above)
Wear Plate
$ 64.80 / each
Item 5
(on image above)
O-Ring - Buna-N
$ 16.20 / each
Item 67
(on image above)
Seal
Mechanical Seal, Viton/Silicon Carbide, Type 16, size 3/4 Inch
$ 121.50 / each
Item 8
(on image above)
Shaft Sleeve
$ 30.78 / each
Item 9
(on image above)
Impeller Shim Package
$ 9.72 / each
Item 10
(on image above)
Impeller
Impeller
$ 155.52 / each
Item 12
(on image above)
Flapper Valve - Buna-N
$ 33.75 / each
Item 13
(on image above)
Casing
Casing
$ 362.88 / each
Item 25
(on image above)
Pedestal
$ 193.05 / each
Item 27
(on image above)
Bearing
$ 34.02 / each
Item 28
(on image above)
Shaft Sleeve
$ 64.80 / each
Item 29
(on image above)
Key
$ 9.72 / each
Item 30
(on image above)
Bearing Shim Package
$ 9.72 / each
Item 31
(on image above)
Snap Ring
$ 9.72 / each
