AMT Pump model 3656-95 Parts( Click Here for the AMT Pump 3656-95 Product Page ) |
|

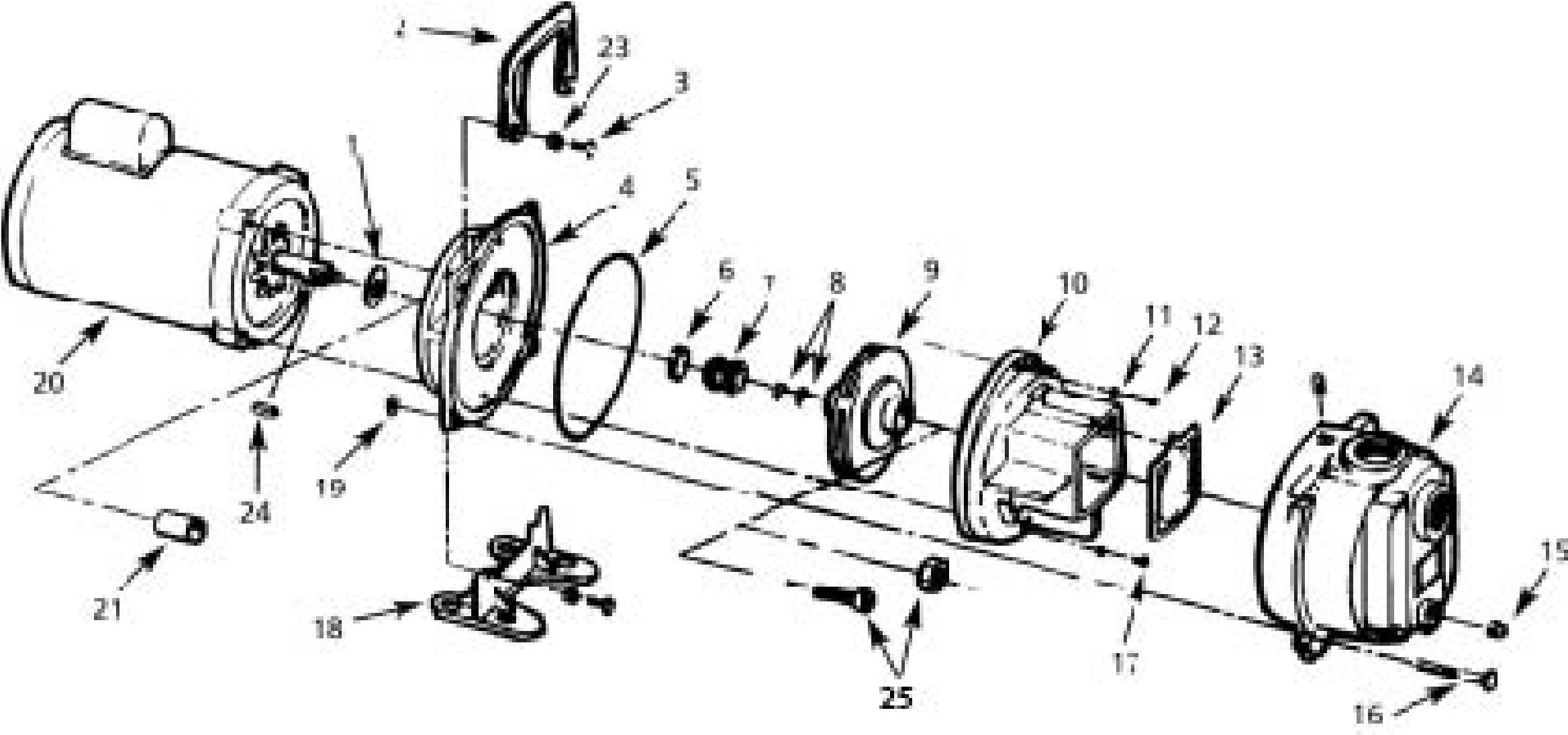

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 3656-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 3656-K5 | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $1202.00 | 2 in Stock | 1 | ||
| 1 | # 1470-093-00 | Slinger Washer | $6.00 | 4 in Stock | 1 | ||
| 5 | # 2186-000-00 | Casing Seal - Buna N (standard) | $11.00 | 2 in Stock | 1 | ||
| 6+7 | # 1640-163-90 | Mechanical Seal, Buna-N/Carbon/Ceramic, Type 21, size 1-1/8 Inch | $33.00 | 3 in Stock | 1 | ||
| 8 | # 1664-000-90 | Impeller Shims | $19.00 | 2 in Stock | 1 | ||
| 9 | # 3656-012-98 | Impeller Kit | $223.00 | 2 in Stock | 1 | ||
| 10 | # 3655-150-95 | Volute Kit | $230.00 | 2 in Stock | 1 | ||
| 13 | # 1609-002-00 | Flapper Valve - Buna N (standard) | $25.00 | 2 in Stock | 1 | ||
| 14 | # 2112-001-02 | Casing Kit | $320.00 | 2 in Stock | 1 | ||
| 20 | # 1627-353-00 | Motor, 7-1/2 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 184JM Frame, replacement electric motor only (pump is not included) | $1315.00 | 2 in Stock | 1 | ||
| 21 | # 1555-142-00 | Shaft Sleeve | $34.00 | 12 in Stock | 1 | ||
| 23 | # 1756-000-00 | Washer | $7.00 | 2 in Stock | 1 | ||
| 24 | # 1471-030-00 | Impeller Key | $6.00 | 2 in Stock | 1 | ||
