AMT Pump model 3694-97 Parts( Click Here for the AMT Pump 3694-97 Product Page ) |
|

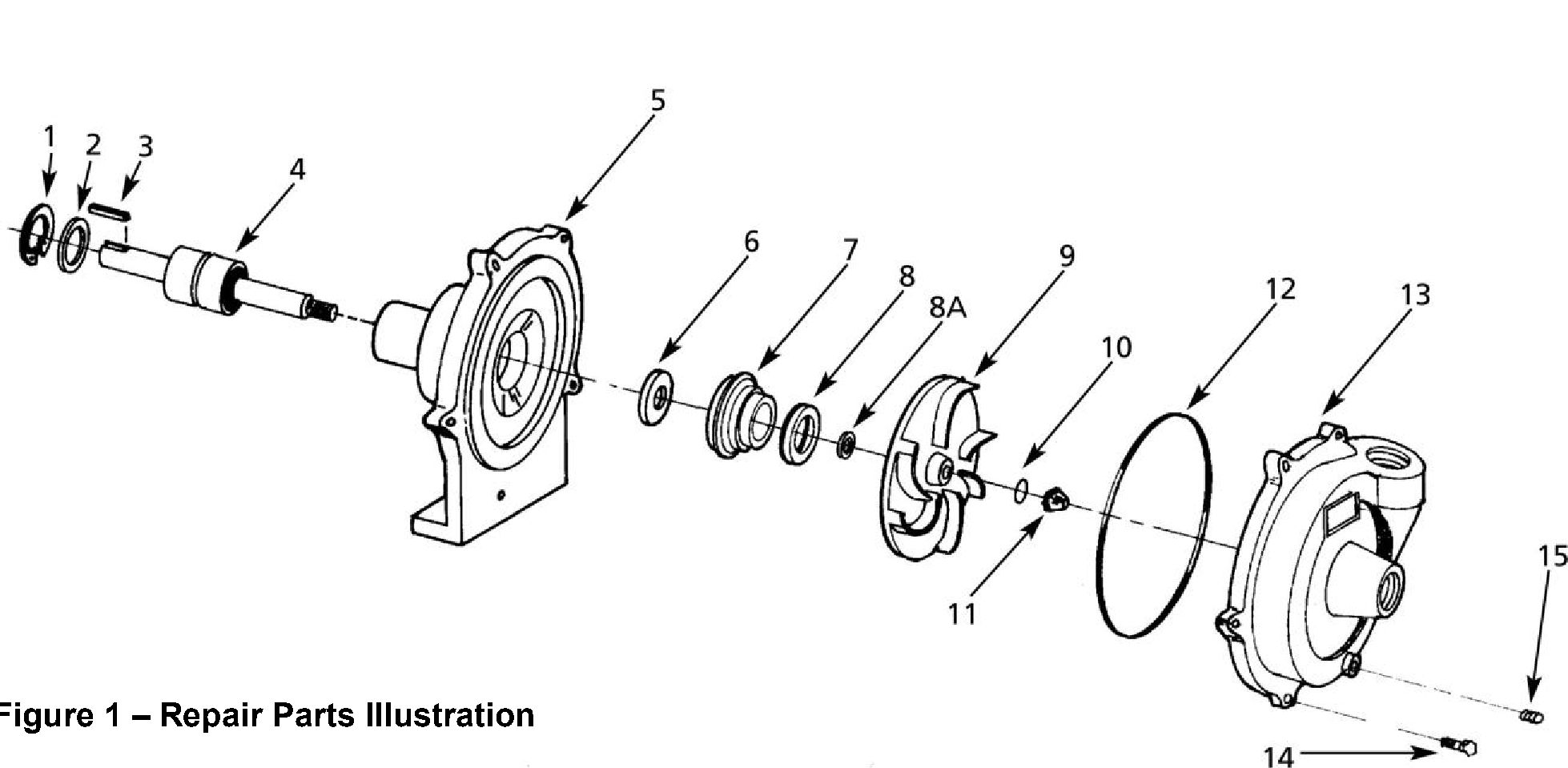

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 3694-97 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1806-062-00 | Snap Ring | $6.60 | 2 in Stock | 1 | ||
| 2 | # 1696-003-90 | Bearing Shim Package for Cast Iron and Bronze Pumps | $6.60 | 2 in Stock | 1 | ||
| 2 | # 1806-080-90 | Bearing Shim Package for Stainless Steel Pumps | $16.50 | 2 in Stock | 1 | ||
| 3 | # 1517-000-00 | Shaft Key | $6.60 | 4 in Stock | 1 | ||
| 4 | # 1509-140-90 | Shaft and Bearing Assembly for Cast Iron and Bronze Pumps | $101.20 | 1 in Stock | 1 | ||
| 4 | # 3682-140-90 | Shaft and Bearing Assembly for Stainless Steel Pumps | $121.00 | 2 in Stock | 1 | ||
| 5 | # 3694-090-98 | Pedestal, Bronze, includes Pedestal, Snap Ring, Bearing Shim, Shaft Key, and Shaft and Bearing Assembly. | $412.50 | 2 in Stock | 1 | ||
| 5 | # 3694-090-98 | Pedestal, Stainless Steel, includes Pedestal, Snap Ring, Bearing Shim, Shaft Key, and Shaft and Bearing Assembly. | $412.50 | 2 in Stock | 1 | ||
| 6 | # 1534-000-00 | 5/8 Slinger Washer (not required) | $6.60 | 1 in Stock | 1 | ||
| 7+8 | # 1640-161-92 | Mechanical Seal, Buna-N, Type 6A, size 5/8 Inch | $22.00 | 2 in Stock | 1 | ||
| 7+8 | # 1640-161-95 | Mechanical Seal, Viton, Type 6A, size 5/8 Inch | $48.40 | 5 in Stock | 1 | ||
| 8A | # 1806-044-90 | Impeller Shim Kit | $6.60 | 3 in Stock | 1 | ||
| 9 | # 3690-010-98 | Impeller Kit, includes Impeller, Impeller Shim, and Acorn Nut. | $99.00 | 2 in Stock | 1 | ||
| 11 | # 1784-001-00 | Acorn Nut | $12.10 | 2 in Stock | 1 | ||
| 13 | # 3690-003-97 | Casing Kit - Bronze, includes Casing, Cap Screw, and Pipe Plug. | $316.80 | 2 in Stock | 1 | ||
| 13 | # 3690-001-98 | Casing Kit - Stainless Steel, includes Casing, Cap Screw, and Pipe Plug. | $280.50 | 2 in Stock | 1 | ||
| KIT | # 3690-300-90 | O-Ring Kit - Buna-N | $23.10 | 20 in Stock | 1 | ||
| KIT | # 3690-300-91 | O-Ring Kit - Viton | $34.10 | 2 in Stock | 1 | ||
