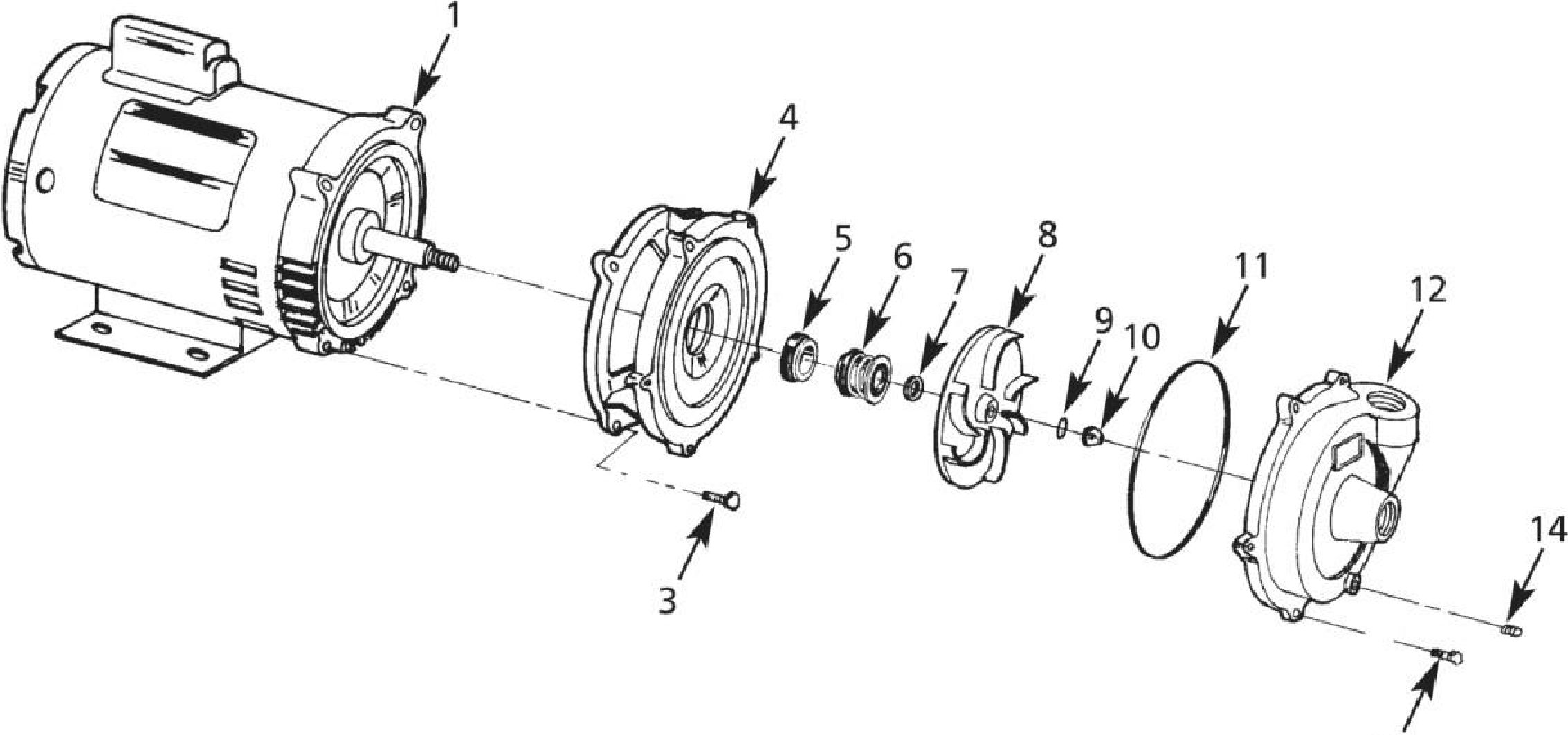

Parts for AMT Pump model # 369B-95

Item 1
(on image above)

Motor

Motor, 1-1/2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)

$ 644.76 / each

Item 4
(on image above)

Part # 3690-035-00

Adapter -Cast Iron

$ 66.42 / each

Item 56
(on image above)

Part # 1640-161-90

Seal

Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch

$ 24.30 / each

Item 7
(on image above)

Part # 1806-044-90

Impeller Shim Set

$ 8.10 / each

Item 10
(on image above)

Part # 1784-001-00

Impeller Fastener

$ 14.85 / each

Item 12
(on image above)

Part # 3690-002-09

Casing

Casing -Cast Iron

$ 132.84 / each

Item KIT
(on image above)

Part # 3690-300-90

O-Ring Seal Kit -Buna N. Includes : Impeller Seal -Buna N (Ref. 9), Casing Seal -Buna N (Ref. 11)

$ 34.02 / each

AMT Pump model 369B-95 Parts
