AMT Pump model 369D-95 Parts

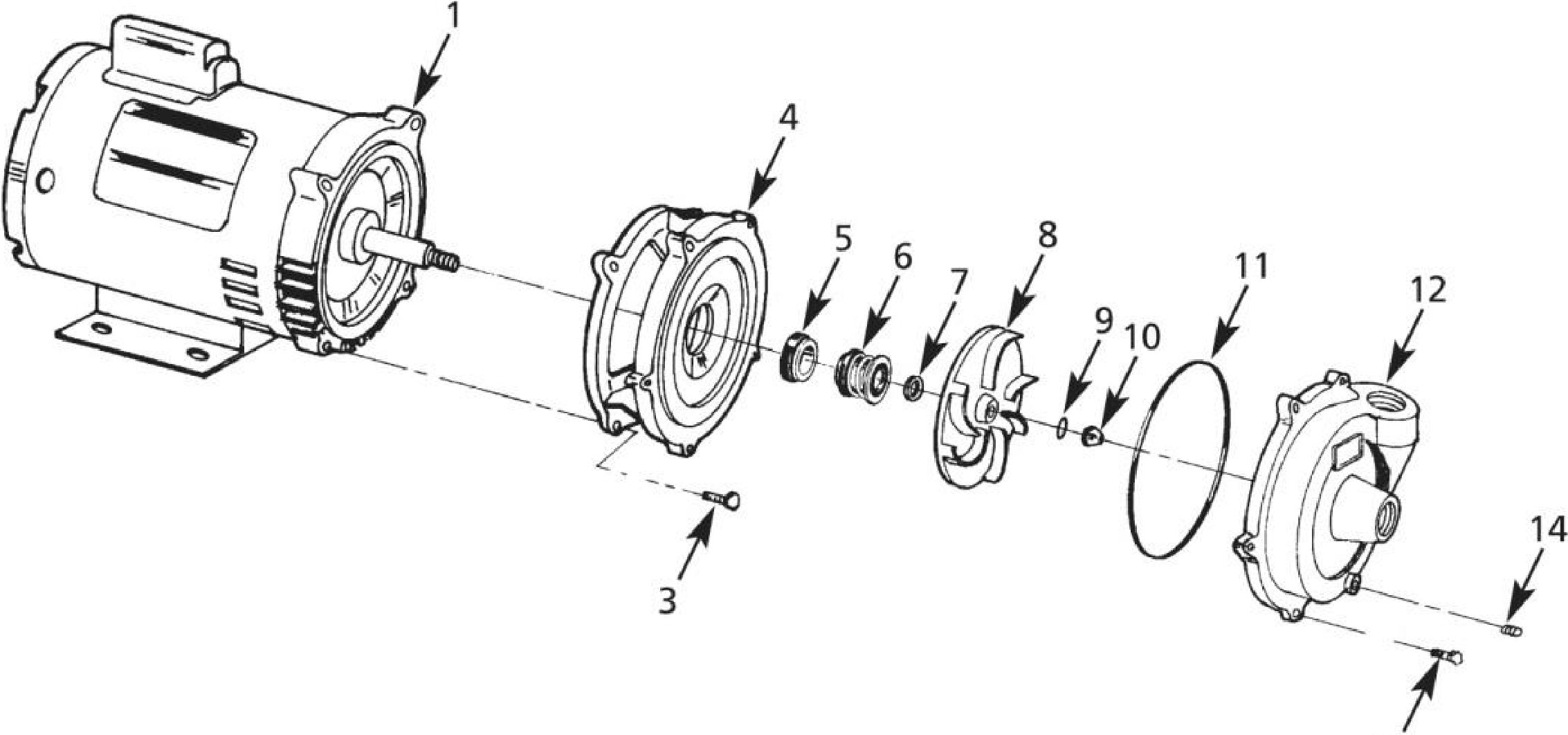

PARTS LIST for AMT Pump model # 369D-95 Pump:
( Click Here for the AMT Pump 369D-95 Product Page )
Item 1
(on image above)
Motor
Motor, 2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
$ 678.78 / each
Item 4
(on image above)
Adapter -Cast Iron
$ 66.42 / each
Item 56
(on image above)
Seal
Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 24.30 / each
Item 7
(on image above)
Impeller Shim Set
$ 8.10 / each
Item 10
(on image above)
Impeller Fastener
$ 14.85 / each
Item 12
(on image above)
Casing
Casing -Cast Iron
$ 132.84 / each
Item KIT
(on image above)
O-Ring Seal Kit -Buna N. Includes : Impeller Seal -Buna N (Ref. 9), Casing Seal -Buna N (Ref. 11)
$ 34.02 / each
