AMT Pump model 369F-98 Parts
PARTS LIST for AMT Pump model # 369F-98 Pump:

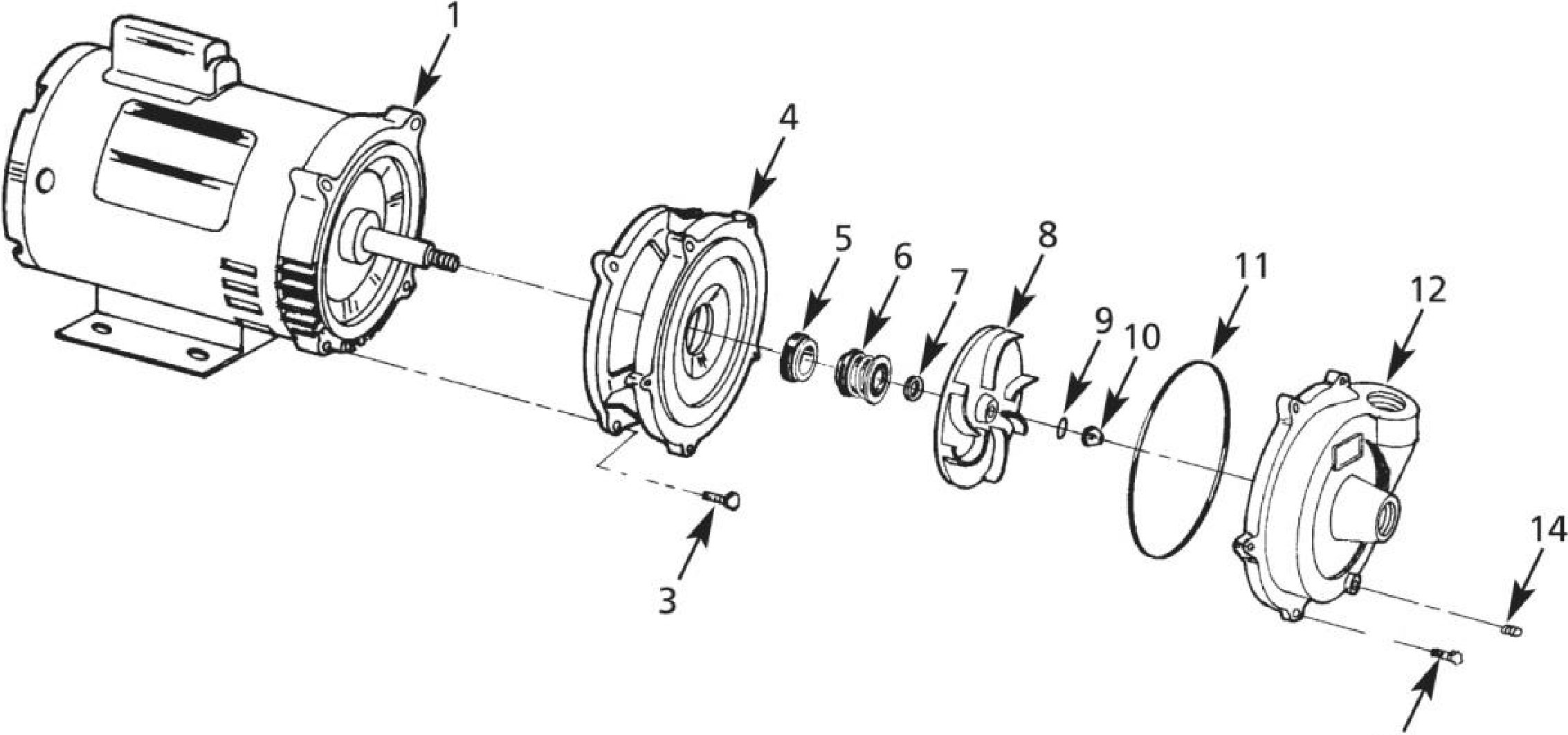

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the AMT Pump 369F-98 Product Page )
Item 1
(on image above)
Motor
Motor, 1 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 529.74 / each
Item 4
(on image above)
Adapter -Stainless Steel
$ 335.34 / each
Item 56
(on image above)
Seal
Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 58.05 / each
Item 7
(on image above)
Impeller Shim Set
$ 8.10 / each
Item 10
(on image above)
Impeller Fastener
$ 14.85 / each
Item KIT
(on image above)
O-Ring Seal Kit -Viton. Includes : Impeller Seal -Viton (Ref. 9), Casing Seal -Viton (Ref. 11)
$ 41.85 / each
