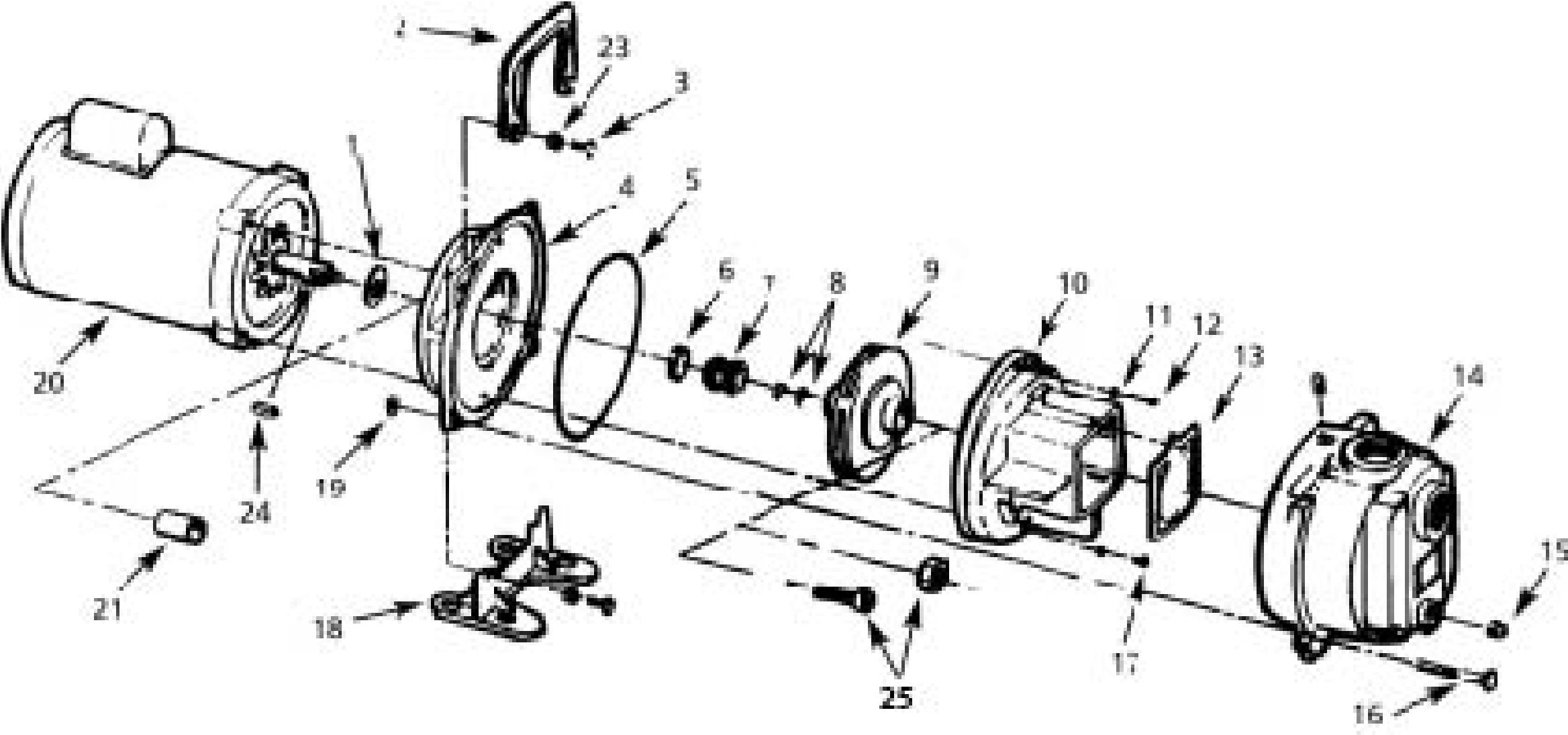

AMT Pump model 379B-95 Parts( Click Here for the AMT Pump 379B-95 Product Page ) |
|
Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 379B-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1534-000-00 | Slinger Washer | $6.60 | 1 in Stock | 1 is Req'd | ||
| 2 | # 1515-000-00 | Handle | $12.10 | 2 in Stock | 1 is Req'd | ||
| 4 | # 3160-032-95 | Adapter Kit | $149.60 | 2 in Stock | 1 is Req'd | ||
| 5 | # 1610-000-00 | Casing Seal - Buna N (standard) | $13.20 | 3 in Stock | 1 is Req'd | ||
| 6+7 | # 1640-161-96 | Mechanical Seal, Buna-N, Type 21, size 5/8 Inch | $24.20 | 5 in Stock | 1 is Req'd | ||
| 9 | # 379B-011-98 | Impeller Kit | $146.30 | 2 in Stock | 1 is Req'd | ||
| 10 | # 379D-150-95 | Volute Kit | $132.00 | 2 in Stock | 1 is Req'd | ||
| 13 | # 1609-002-00 | Flapper Valve - Buna N (standard) | $27.50 | 2 in Stock | 1 is Req'd | ||
| 14 | # 3160-001-95 | Casing Kit | $247.50 | 2 in Stock | 1 is Req'd | ||
| 18 | # 1506-000-00 | Foot | $18.70 | 2 in Stock | 1 is Req'd | ||
| 20 | # 1626-304-00 | Motor, 1-1/2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included) | $607.20 | 1 in Stock | 1 is Req'd | ||
