AMT Pump model 379E-95 Parts

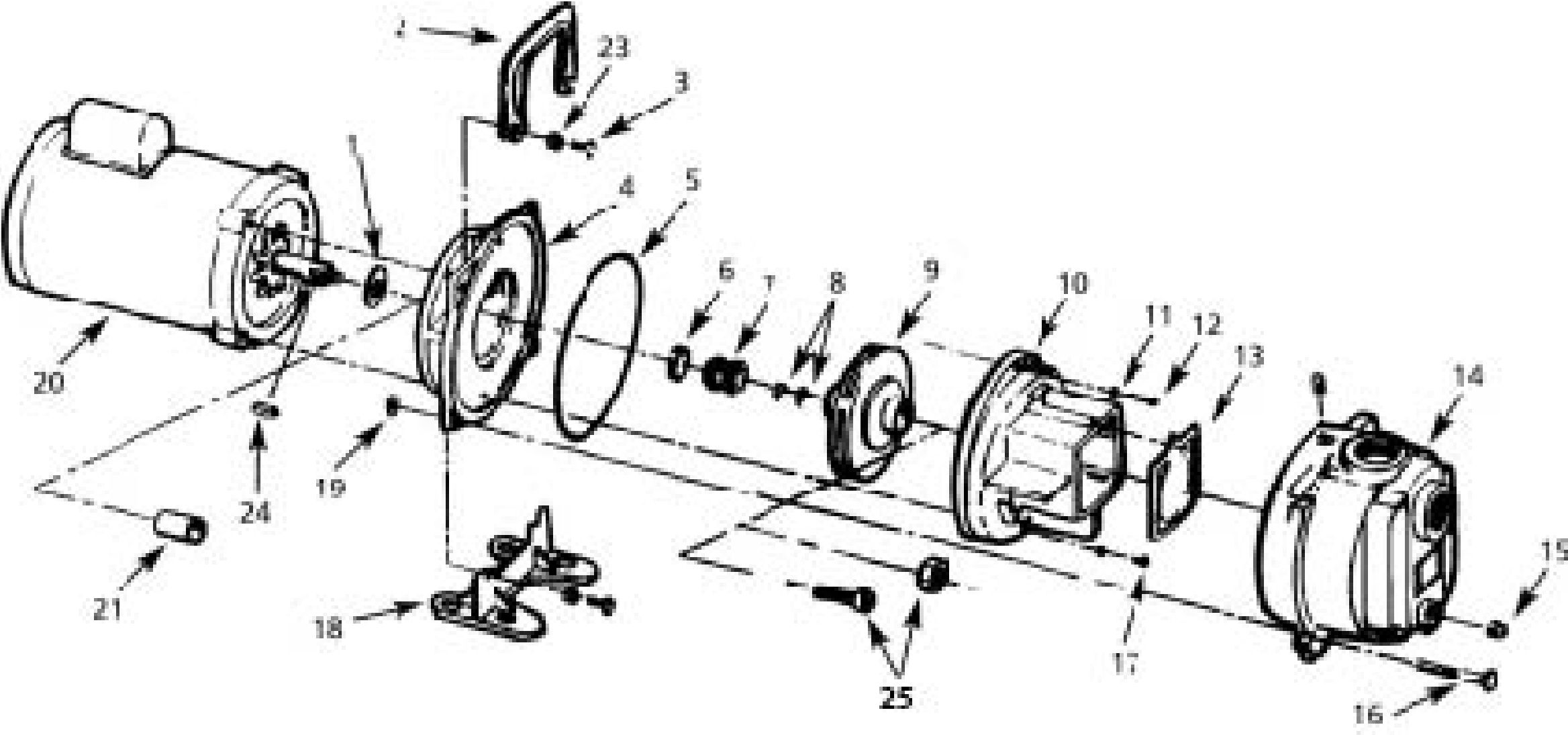

PARTS LIST for AMT Pump model # 379E-95 Pump:
( Click Here for the AMT Pump 379E-95 Product Page )
Item 1
(on image above)
Slinger Washer
$ 9.72 / each
Item 2
(on image above)
Handle
$ 17.82 / each
Item 4
(on image above)
Adapter
$ 162.00 / each
Item 5
(on image above)
Casing Seal - Buna N (standard)
$ 16.20 / each
Item 5
(on image above)
Casing Seal - Viton (optional)
$ 21.06 / each
Item 67
(on image above)
Seal
Mechanical Seal, Buna-N, Type 21, size 5/8 Inch
$ 24.30 / each
Item 67
(on image above)
Mechanical Seal, Viton, Type 21, size 5/8 Inch
$ 54.00 / each
Item 10
(on image above)
Volute. Includes : Volute (Ref. 10), Washer (Ref. 11), Fastener (Ref. 12), Fastener (Ref. 17)
$ 178.20 / each
Item 13
(on image above)
Flapper Valve - Buna N (standard)
$ 33.75 / each
Item 18
(on image above)
Foot
$ 22.95 / each
Item 20
(on image above)
Motor
Motor, 2 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 678.78 / each
Item 23
(on image above)
Impeller Fastener
$ 14.85 / each
