AMT Pump model 3891-97 Parts

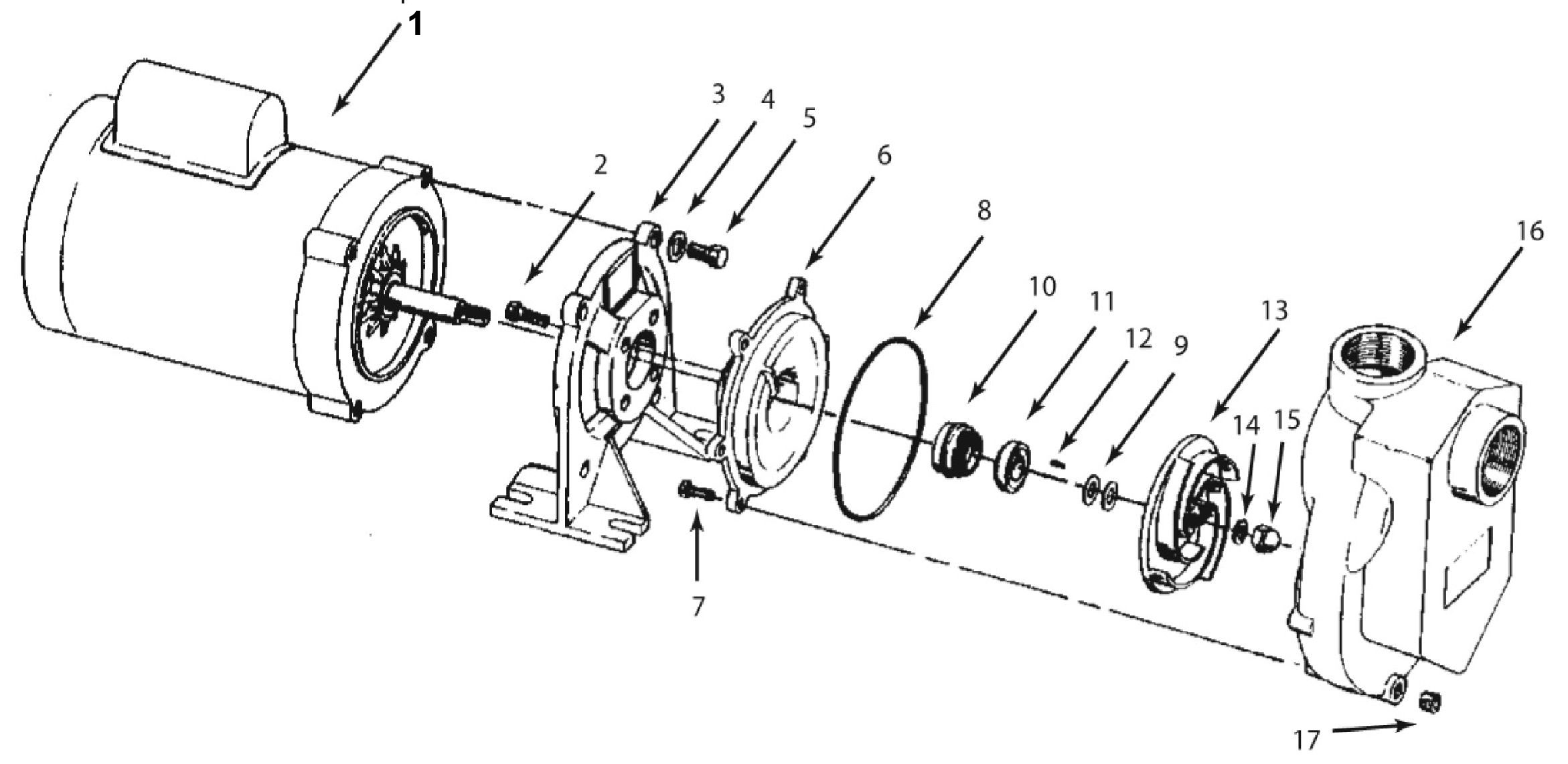

PARTS LIST for AMT Pump model # 3891-97 Pump:
( Click Here for the AMT Pump 3891-97 Product Page )
Item 1
(on image above)
Motor
Motor, 1-1/2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
$ 644.76 / each
Item 3
(on image above)
Adapter
$ 100.44 / each
Item 6
(on image above)
Casing Cover - Bronze
$ 213.30 / each
Item 8
(on image above)
Casing Seal - Viton (standard on Bronze)
$ 13.50 / each
Item 9
(on image above)
Impeller Shim Kit
$ 8.10 / each
Item 1011
(on image above)
Seal
Mechanical Seal, Viton, Type 6A, size 3/4 Inch
$ 63.45 / each
Item 12
(on image above)
Pin (used for Teflon seals ONLY)
$ 8.10 / each
Item 13
(on image above)
Impeller
Impeller
$ 103.95 / each
Item 14
(on image above)
Impeller Seal - Viton (standard on Bronze)
$ 9.45 / each
Item 15
(on image above)
Impeller Fastener
$ 14.85 / each
