AMT Pump model 3893-98 Parts
PARTS LIST for AMT Pump model # 3893-98 Pump:
( Click Here for the AMT Pump 3893-98 Product Page )
Item 1

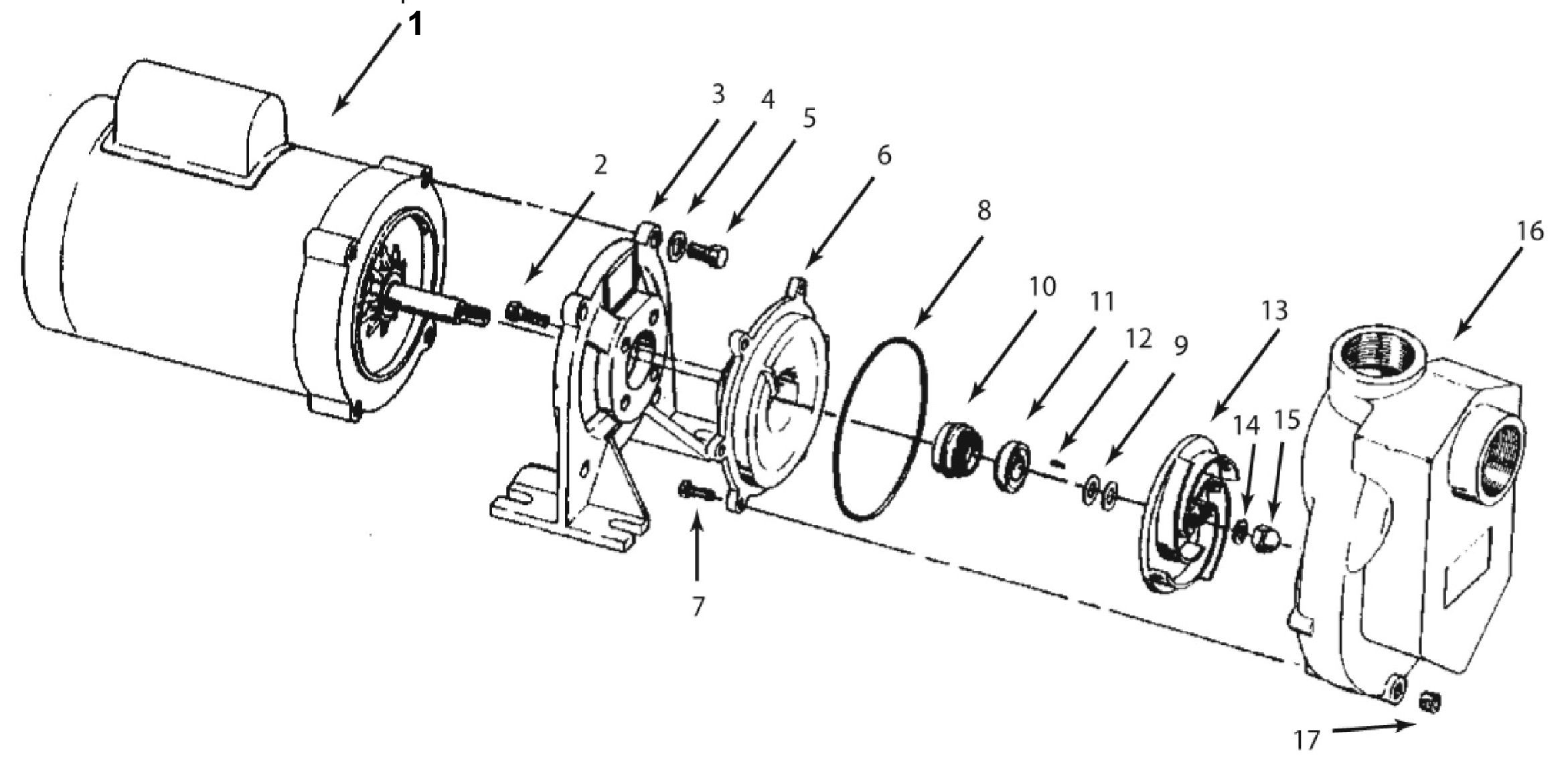

(on image above)
Motor
Motor, 1-1/2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 644.76 / each
Item 3
(on image above)
Adapter
$ 100.44 / each
Item 6
(on image above)
Casing Cover - Stainless Steel
$ 183.06 / each
Item 8
(on image above)
Casing Seal - Teflon (standard on Stainless Steel)
$ 55.35 / each
Item 9
(on image above)
Impeller Shim Kit
$ 8.10 / each
Item 1011
(on image above)
Seal
Mechanical Seal, Teflon, Type 9A, size 3/4 Inch
$ 1406.70 / each
Item 12
(on image above)
Pin (used for Teflon seals ONLY)
$ 8.10 / each
Item 13
(on image above)
Impeller
Impeller
$ 103.95 / each
Item 14
(on image above)
Impeller Seal - Teflon (standard on Stainless Steel)
$ 9.72 / each
Item 15
(on image above)
Impeller Fastener
$ 14.85 / each
