AMT Pump model 393A-95 Parts

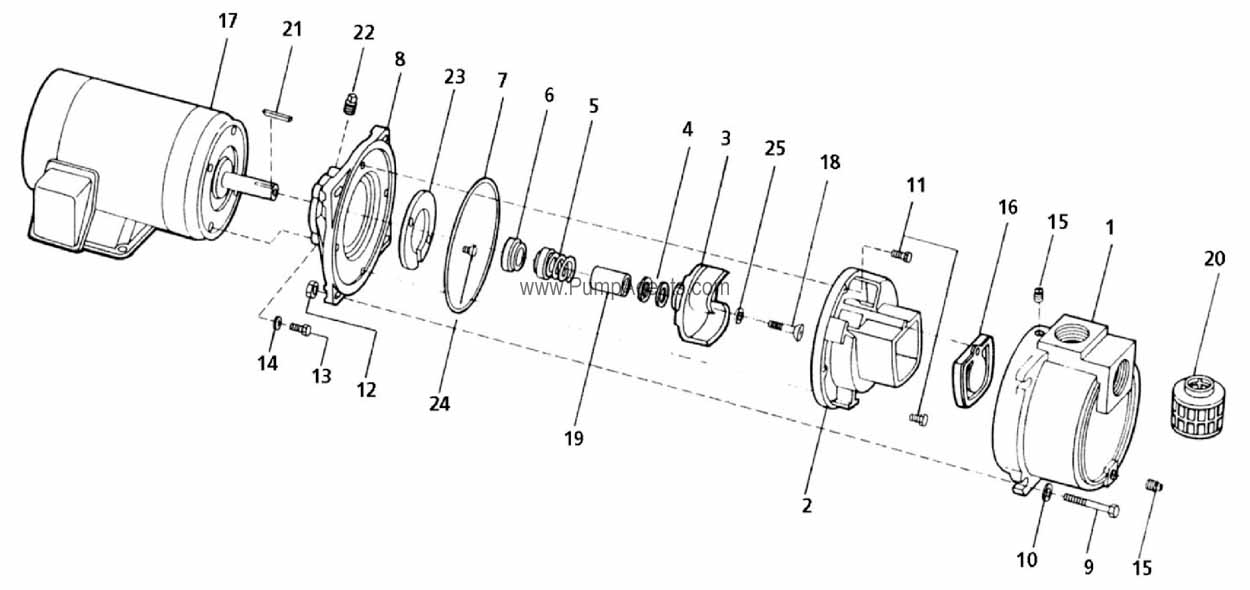

PARTS LIST for AMT Pump model # 393A-95 Pump:
To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the AMT Pump 393A-95 Product Page )
Item 1
(on image above)
Casing
Casing
$ 362.88 / each
Item 3
(on image above)
Impeller
Impeller Kit. Includes : Impeller Kit (Ref. 3), Impeller Shim Set (Ref. 4), Impeller Screw (Ref. 18), Impeller Key (Ref. 21)
$ 405.00 / each
Item 4
(on image above)
Impeller Shim Set
$ 16.20 / each
Item 56
(on image above)
Seal
Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch
$ 176.85 / each
Item 20
(on image above)
Suction Strainer
$ 27.54 / each
Item 26
(on image above)
Gasket Kit - Buna-N. Includes : O-Ring - Buna-N (Ref. 7), Flapper Valve Assembly - Buna-N (Ref. 16), O-Ring - Buna-N (Ref. 25)
$ 54.00 / each
