AMT Pump model 393B-95 Parts

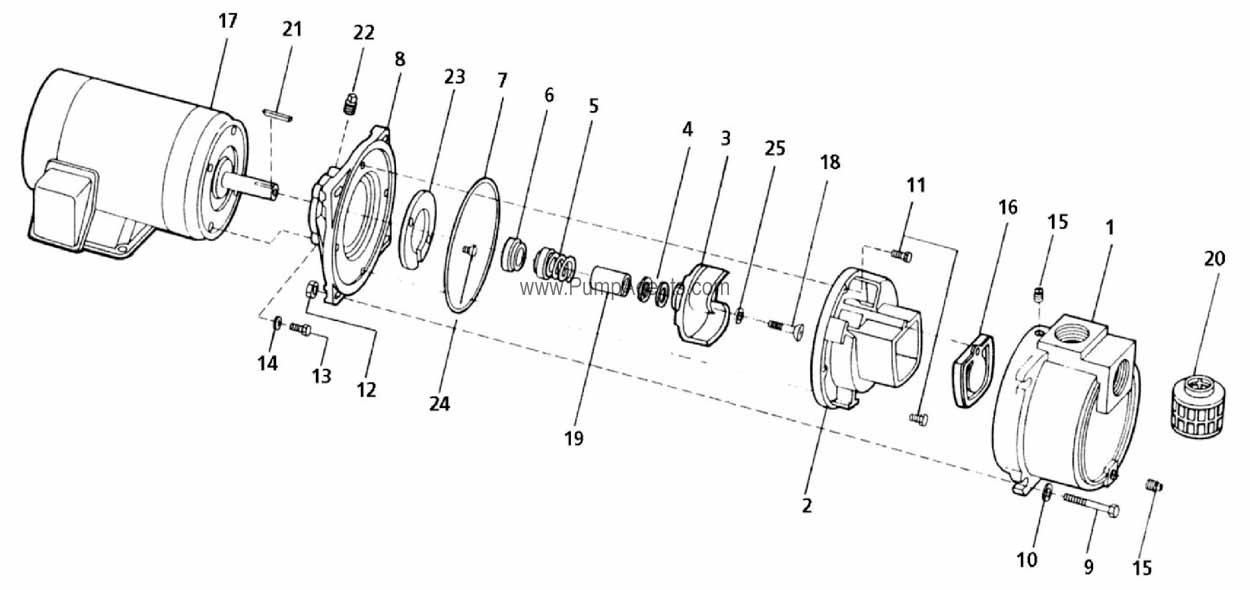

PARTS LIST for AMT Pump model # 393B-95 Pump:
( Click Here for the AMT Pump 393B-95 Product Page )
Item 1
(on image above)
Casing
Casing
$ 362.88 / each
Item 3
(on image above)
Impeller
Impeller Kit. Includes : Impeller Kit (Ref. 3), Impeller Shim Set (Ref. 4), Impeller Screw (Ref. 18), Impeller Key (Ref. 21)
$ 405.00 / each
Item 4
(on image above)
Impeller Shim Set
$ 16.20 / each
Item 56
(on image above)
Seal
Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch
$ 176.85 / each
Item 17
(on image above)
Motor
Motor, 5 Horsepower, Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60 Hz, Nema 184JM Frame, replacement electric motor only (pump is not included)
$ 2041.20 / each
Item 20
(on image above)
Suction Strainer
$ 27.54 / each
Item 26
(on image above)
Gasket Kit - Buna-N. Includes : O-Ring - Buna-N (Ref. 7), Flapper Valve Assembly - Buna-N (Ref. 16), O-Ring - Buna-N (Ref. 25)
$ 54.00 / each
