AMT Pump model 394J-95 Parts( Click Here for the AMT Pump 394J-95 Product Page ) |
|

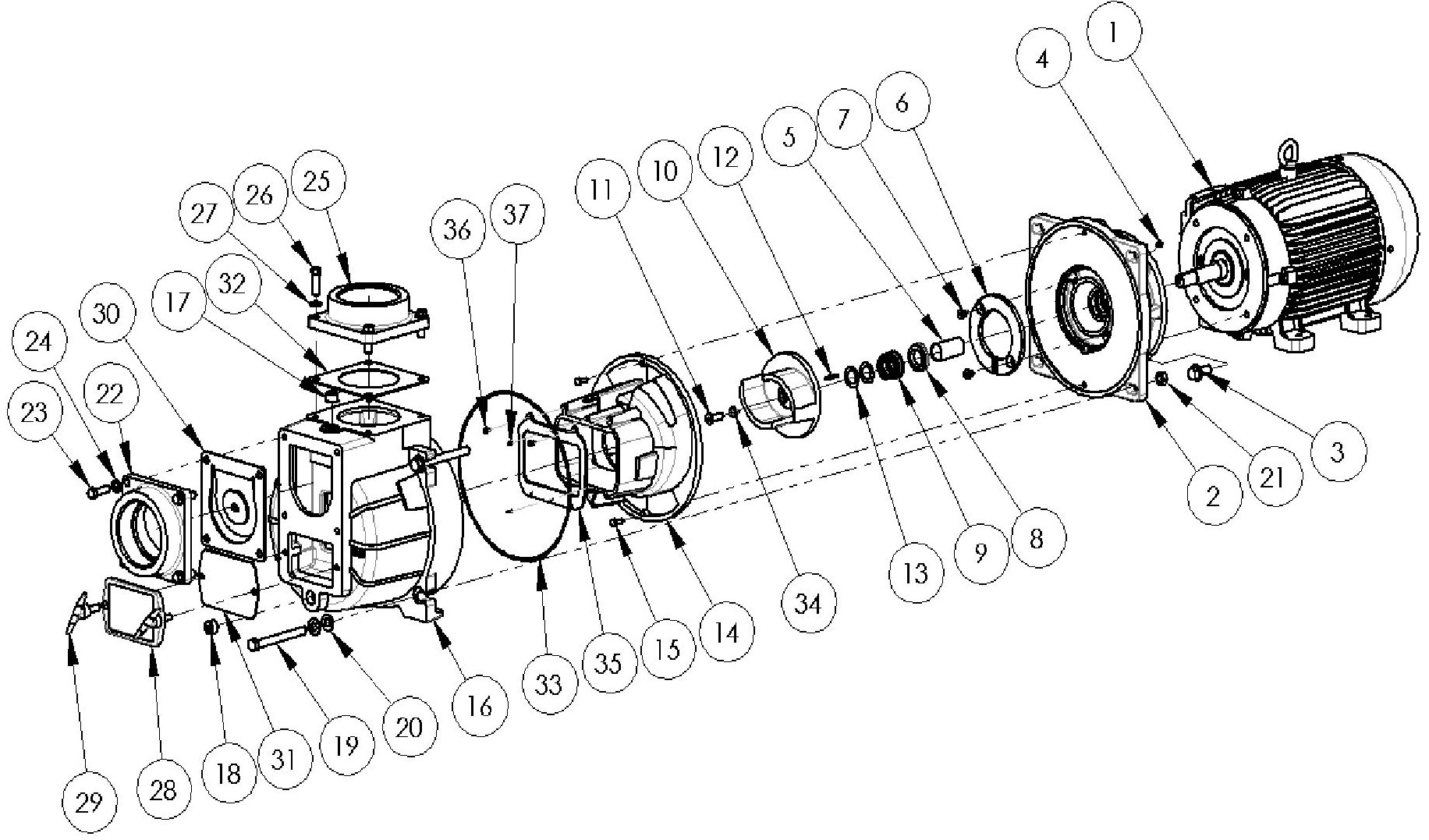

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 394J-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 394J-K5 | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $2797.30 | 1 in Stock | 1 | ||
| 1 | # 1627-354-00 | Motor, 10 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 215JM Frame, replacement electric motor only (pump is not included) | $1606.00 | 1 in Stock | 1 | ||
| 2 | # 394H-030-95 | Adapter Kit, includes Adapter, Hex Head Screws, Plug, and Shaft Sleeve. | $484.00 | 2 in Stock | 1 | ||
| 5 | # 1555-142-00 | Shaft Sleeve | $37.40 | 12 in Stock | 1 | ||
| 6 | # 2182-004-90 | Wear Plate Kit, includes Wear Plate, and Flat Head Screw. | $82.50 | 2 in Stock | 1 | ||
| 8+9 | # 1640-167-90 | Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch | $144.10 | 13 in Stock | 1 | ||
| 10 | # 394C-010-98 | Impeller Kit, includes Impeller, Impeller Screw, Drive Key, and Impeller Shim. | $370.70 | 2 in Stock | 1 | ||
| 13 | # 1664-000-90 | Impeller Shim Kit | $20.90 | 2 in Stock | Varies | ||
| 14 | # 399C-150-95 | Volute Kit, includes Volute, and Hex Head Screws. | $301.40 | 2 in Stock | 1 | ||
| 16 | # 394G-001-95 | Casing Kit, includes Casing, Fill Plug, Drain Plug, Hex Head Bolts, Flat Washers, and Hex Nuts. | $858.00 | 2 in Stock | 1 | ||
| 22 | # 394E-080-95 | Suction Flange Kit, includes Suction Flange, Hex Head Screws, and Lock Washers. | $129.80 | 2 in Stock | 1 | ||
| 25 | # 394E-080-95 | Discharge Flange Kit, includes Discharge Flange, Hex Head Screws, and Lock Washers. | $129.80 | 2 in Stock | 1 | ||
| 28 | # 399C-040-95 | Cleanout Cover Kit, includes Cleanout Cover, and Handle. | $88.00 | 2 in Stock | 1 | ||
| 30 | # 399C-070-90 | Check Valve Assembly | $56.10 | 2 in Stock | 1 | ||
| KIT | # 394J-300-90 | Gasket Kit, includes All Gaskets and O-Rings, as well as a Flat Head Screw, and Pin. | $66.00 | 20 in Stock | 1 | ||
| 38 | # 1681-000-00 | Suction Strainer (not shown) | $49.50 | 2 in Stock | 1 | ||
