AMT Pump model 3993-96 Parts

PARTS LIST for AMT Pump model # 3993-96 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the AMT Pump 3993-96 Product Page )

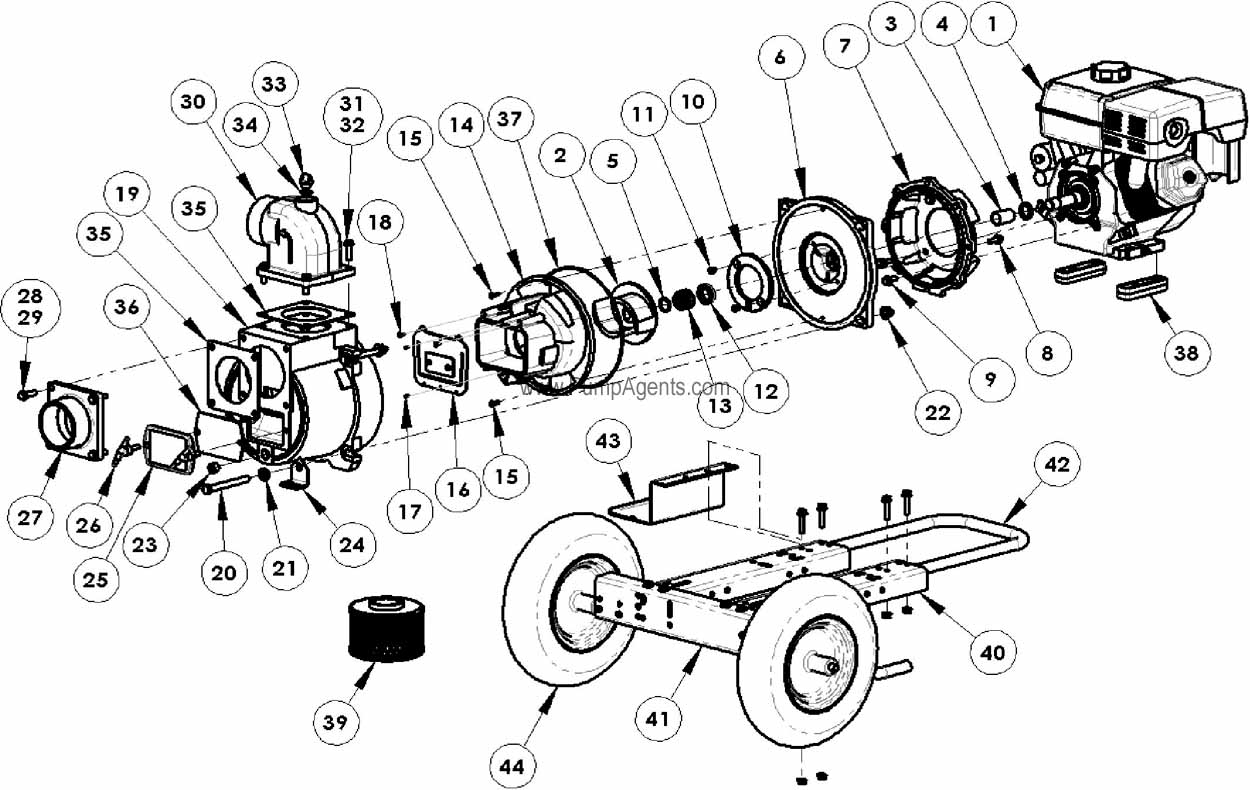

Blowup of 3993-96


Item 1
(on image above)

Part # 1639-063-00

Engine

$ 3222.18 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 2
(on image above)

Part # 3945-013-95

Impeller

Impeller Kit. Includes : Impeller Kit (Ref. 2), Shaft Sleeve (Ref. 3), Shaft Flange (Ref. 4), Impeller Shim Kit (Ref. 5)

$ 307.80 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 6
(on image above)

Part # 3993-020-96

Casing Cover Kit. Includes : Casing Cover Kit (Ref. 6), Adapter (Ref. 7), Hex Screw (Ref. 8), Hex Screw (Ref. 9)

$ 660.96 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 10
(on image above)

Part # 2182-004-90

Wear Plate Kit. Includes : Wear Plate Kit (Ref. 10), Flat Head Screw (Ref. 11)

$ 121.50 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 1213
(on image above)

Part # 1640-163-94

Seal

Mechanical Seal, Viton/Carbon/Silicon Carbide, Type 21, size 1-1/8 Inch

$ 129.60 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 1213
(on image above)

Part # 1640-167-90

Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch

$ 176.85 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (14 in stock)


Item 14
(on image above)

Part # 399C-150-95

Volute Kit. Includes : Volute Kit (Ref. 14), Hex Screw (Ref. 15)

$ 443.88 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 16
(on image above)

Part # 1990-005-90

Check Valve Kit-Buna-N (standard). Includes : Check Valve Kit-Buna-N , (Ref. 16), Retainer Pin (Ref. 17), Flat Head Screw (Ref. 18)

$ 82.62 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 16
(on image above)

Part # 1990-019-90

Check Valve Kit-EPR/EPDM (optional). Includes : Check Valve Kit-Buna-N , (Ref. 16), Retainer Pin (Ref. 17), Flat Head Screw (Ref. 18)

$ 129.60 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 16
(on image above)

Part # 1990-013-90

Check Valve Kit-Viton (optional). Includes : Check Valve Kit-Buna-N , (Ref. 16), Retainer Pin (Ref. 17), Flat Head Screw (Ref. 18)

$ 165.24 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 19
(on image above)

Part # 2116-001-96

Casing

Casing Kit. Includes : Casing Kit (Ref. 19), Hex Bolt (Ref. 20), Flat Washer (Ref. 21), Hex Nut (Ref. 22), 1/2 NPT Plug (Ref. 23)

$ 1321.92 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 24
(on image above)

Part # 3993-109-90

Casing Foot Kit. Includes : Impeller Kit (Ref. 2)

$ 72.90 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 25
(on image above)

Part # 2115-002-95

Clean Out Cover Kit. Includes : Clean Out Cover Kit (Ref. 25), Handle Stud (Ref. 26)

$ 129.60 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 27
(on image above)

Part # 3993-050-95

Suction Flange Kit. Includes : Suction Flange Kit (Ref. 27), Hex Screw (Ref. 28), Lock Washer (Ref. 29)

$ 289.98 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 30
(on image above)

Part # 3993-080-95

Discharge Manifold Kit. Includes : Discharge Manifold Kit (Ref. 30), Hex Screw (Ref. 31), Lock Washer (Ref. 32)

$ 396.90 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 33
(on image above)

Part # 3SXB-170-90

Fill Plug Kit-Buna-N oring (standard)

$ 12.96 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 33
(on image above)

Part # 3SXE-170-90

Fill Plug Kit-EPR/EPDM oring (optional)

$ 14.58 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 33
(on image above)

Part # 3SXV-170-90

Fill Plug Kit-Viton oring (optional). Includes : Fill Plug Kit-Buna-N oring (Ref. 33), 117 O-ring (Ref. 34)

$ 17.82 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)
