AMT Pump model 3994-96 Parts

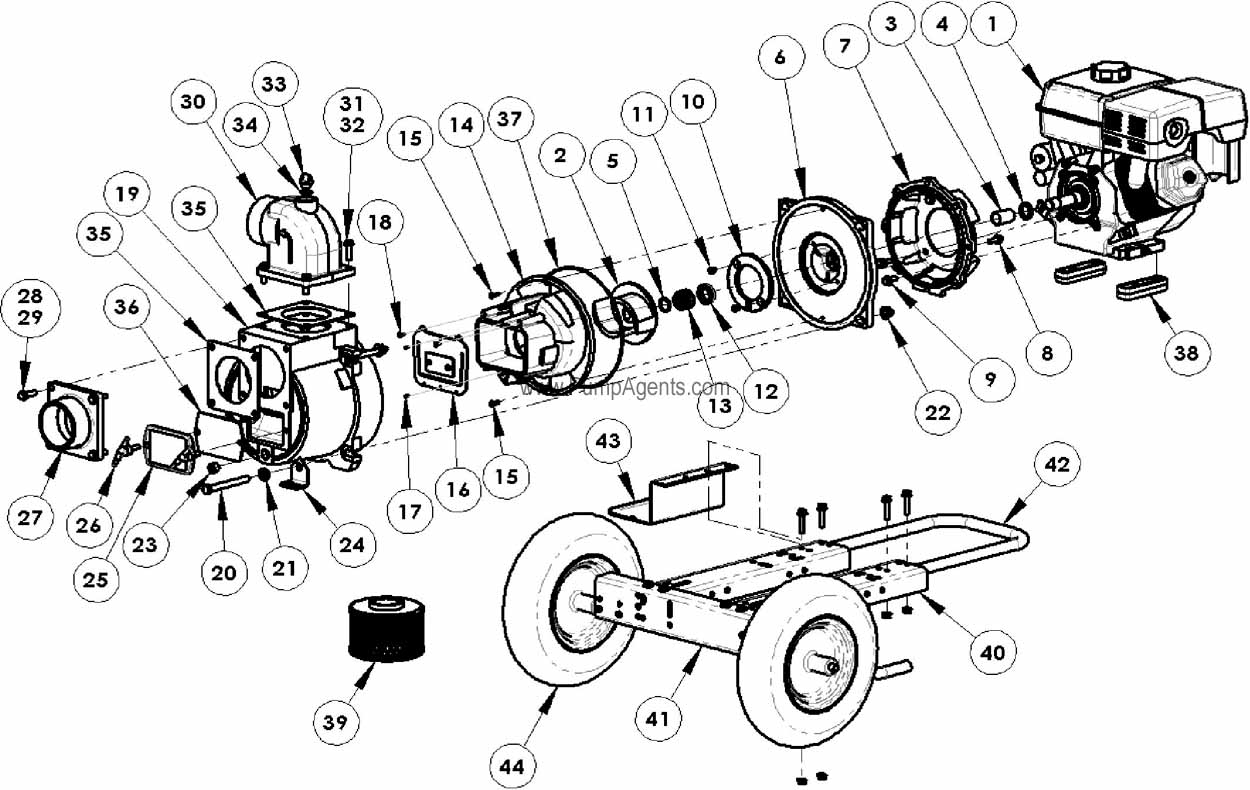

PARTS LIST for AMT Pump model # 3994-96 Pump:
( Click Here for the AMT Pump 3994-96 Product Page )
Item 1
(on image above)
Engine
$ 2643.84 / each
Item 2
(on image above)
Impeller
Impeller Kit. Includes : Impeller Kit (Ref. 2), Shaft Sleeve (Ref. 3), Shaft Flange (Ref. 4), Impeller Shim Kit (Ref. 5)
$ 307.80 / each
Item 6
(on image above)
Casing Cover Kit. Includes : Casing Cover Kit (Ref. 6), Adapter (Ref. 7), Hex Screw (Ref. 8), Hex Screw (Ref. 9)
$ 660.96 / each
Item 10
(on image above)
Wear Plate Kit. Includes : Wear Plate Kit (Ref. 10), Flat Head Screw (Ref. 11)
$ 121.50 / each
Item 1213
(on image above)
Seal
Mechanical Seal, Viton/Carbon/Silicon Carbide, Type 21, size 1-1/8 Inch
$ 129.60 / each
Item 1213
(on image above)
Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch
$ 176.85 / each
Item 14
(on image above)
Volute Kit. Includes : Volute Kit (Ref. 14), Hex Screw (Ref. 15)
$ 443.88 / each
Item 16
(on image above)
Check Valve Kit-Buna-N (standard). Includes : Check Valve Kit-Buna-N , (Ref. 16), Retainer Pin (Ref. 17), Flat Head Screw (Ref. 18)
$ 82.62 / each
Item 16
(on image above)
Check Valve Kit-EPR/EPDM (optional). Includes : Check Valve Kit-Buna-N , (Ref. 16), Retainer Pin (Ref. 17), Flat Head Screw (Ref. 18)
$ 129.60 / each
Item 16
(on image above)
Check Valve Kit-Viton (optional). Includes : Check Valve Kit-Buna-N , (Ref. 16), Retainer Pin (Ref. 17), Flat Head Screw (Ref. 18)
$ 165.24 / each
Item 19
(on image above)
Casing
Casing Kit. Includes : Casing Kit (Ref. 19), Hex Bolt (Ref. 20), Flat Washer (Ref. 21), Hex Nut (Ref. 22), 1/2 NPT Plug (Ref. 23)
$ 1321.92 / each
Item 24
(on image above)
Casing Foot Kit. Includes : Impeller Kit (Ref. 2)
$ 72.90 / each
Item 25
(on image above)
Clean Out Cover Kit. Includes : Clean Out Cover Kit (Ref. 25), Handle Stud (Ref. 26)
$ 129.60 / each
Item 27
(on image above)
Suction Flange Kit. Includes : Suction Flange Kit (Ref. 27), Hex Screw (Ref. 28), Lock Washer (Ref. 29)
$ 289.98 / each
Item 30
(on image above)
Discharge Manifold Kit. Includes : Discharge Manifold Kit (Ref. 30), Hex Screw (Ref. 31), Lock Washer (Ref. 32)
$ 396.90 / each
Item 33
(on image above)
Fill Plug Kit-Buna-N oring (standard)
$ 12.96 / each
Item 33
(on image above)
Fill Plug Kit-EPR/EPDM oring (optional)
$ 14.58 / each
Item 33
(on image above)
Fill Plug Kit-Viton oring (optional). Includes : Fill Plug Kit-Buna-N oring (Ref. 33), 117 O-ring (Ref. 34)
$ 17.82 / each
