AMT Pump model 399D-95 Parts

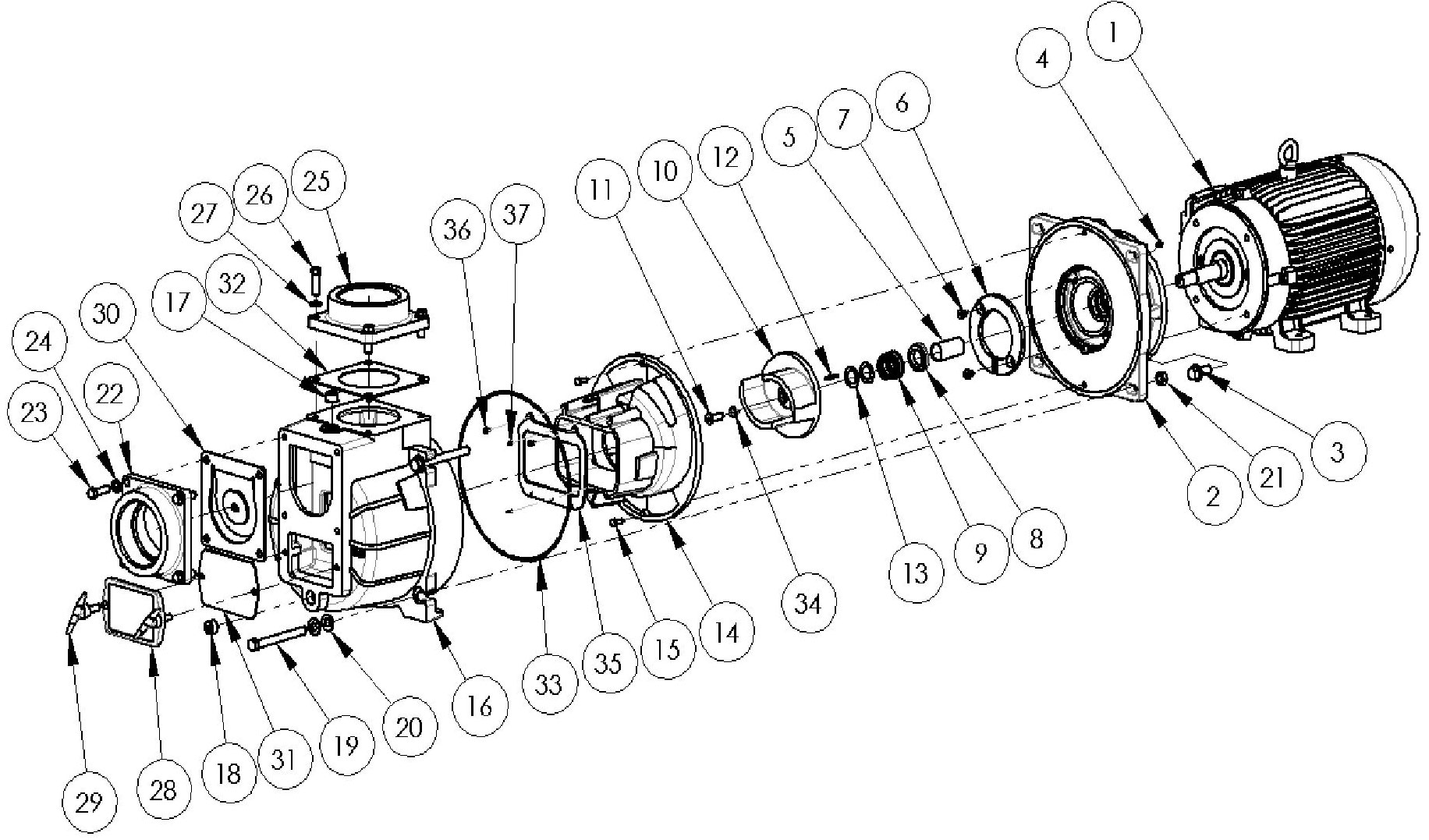

PARTS LIST for AMT Pump model # 399D-95 Pump:
( Click Here for the AMT Pump 399D-95 Product Page )
Item 1
(on image above)
Motor
Motor, 15 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 215JM Frame, replacement electric motor only (pump is not included)
$ 2187.00 / each
Item 2
(on image above)
Adapter Kit. Includes : Adapter Kit (Ref. 2), 1/2-13 Hex Head Flange Screw (Ref. 3), 1/8 NPT Plug (Ref. 4), Shaft Sleeve (Ref. 5)
$ 712.80 / each
Item 6
(on image above)
Wear Plate Kit. Includes : Wear Plate Kit (Ref. 6), Flat Head Screw (Ref. 7)
$ 121.50 / each
Item 89
(on image above)
Seal
Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch
$ 176.85 / each
Item 10
(on image above)
Impeller
Impeller Kit. Includes : Impeller Kit (Ref. 10), Flat Head Impeller Screw (Ref. 11), Drive Key (Ref. 12), Impeller Shim Kit (Ref. 13)
$ 545.94 / each
Item 14
(on image above)
Volute Kit. Includes : Volute Kit (Ref. 14), Hex Head Screw (Ref. 15)
$ 443.88 / each
Item 16
(on image above)
Casing
Casing Kit. Includes : Casing Kit (Ref. 16), Fill Plug (Ref. 17), Drain Plug (Ref. 18), Hex Head Bolt (Ref. 19), Flat Washer (Ref. 20), Hex Nut (Ref. 21)
$ 1263.60 / each
Item 22
(on image above)
Suction Flange Kit. Includes : Suction Flange Kit (Ref. 22), Hex Head Screw (Ref. 23), Lock Washer (Ref. 24)
$ 207.36 / each
Item 25
(on image above)
Discharge Flange Kit. Includes : Discharge Flange Kit (Ref. 25), Hex Head Screw (Ref. 26), Lock Washer (Ref. 27)
$ 207.36 / each
Item 28
(on image above)
Cleanout Cover Kit. Includes : Cleanout Cover Kit (Ref. 28), Handle (Ref. 29)
$ 124.74 / each
Item 30
(on image above)
Check Valve Assembly
$ 82.62 / each
Item KIT
(on image above)
None
Gasket Kit. Includes : Cleanout Cover Gasket (Ref. 31), Flange Gasket (Ref. 32), Casing O-Ring (Ref. 33), Impeller O-Ring (Ref. 34), Volute Gasket (Ref. 35), Flat Head Screw (Ref. 36), Pin (Ref. 37)
$ 97.20 / each
Item 38
(on image above)
Suction Strainer (not shown)
$ 46.98 / each
